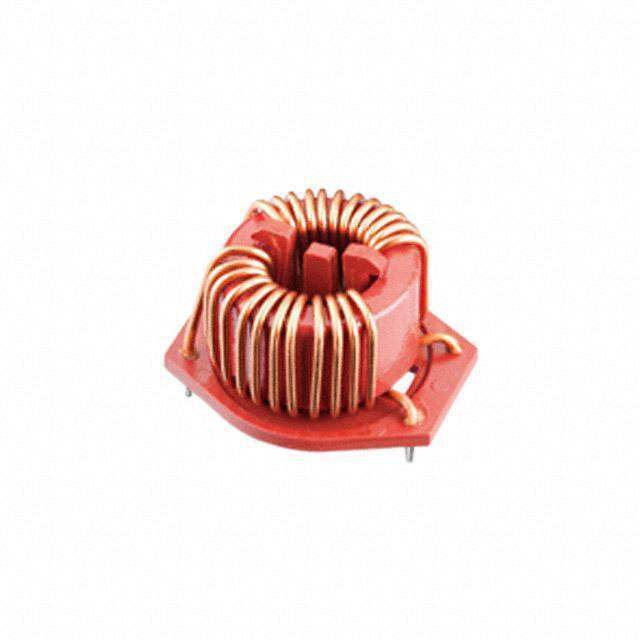

744834101 Würth Elektronik
Same model may have multiple batches, images only for reference.

744834101

Part No 744834101
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 1MH 10A 2LN TH
Datasheet
744834101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1197091-744834101
Manufacturer Würth Elektronik
Category Filters -Common Mode Chokes
Series WE-CMBH
Package Tray
Product Status Active
Filter Type Power Line
Number of Lines 2
Mounting Type Through Hole
Size / Dimension 1.280" L x 1.102" W (32.50mm x 28.00mm)
Height (Max) 0.866" (22.00mm)
Ultra Librarian 3D Model Ultra Librarian 744834101 CAD Model

Description

The WE-CMBH is a common mode choke from Würth Elektronik.

  • Application: Power Line Filtering
  • Package: Tray
  • Dimensions: 1.280" L x 1.102" W (32.50mm x 28.00mm)
  • Height (Max): 0.866" (22.00mm)
  • Number of Lines: 2
  • Mounting Type: Through Hole
  • Product Status: Active
