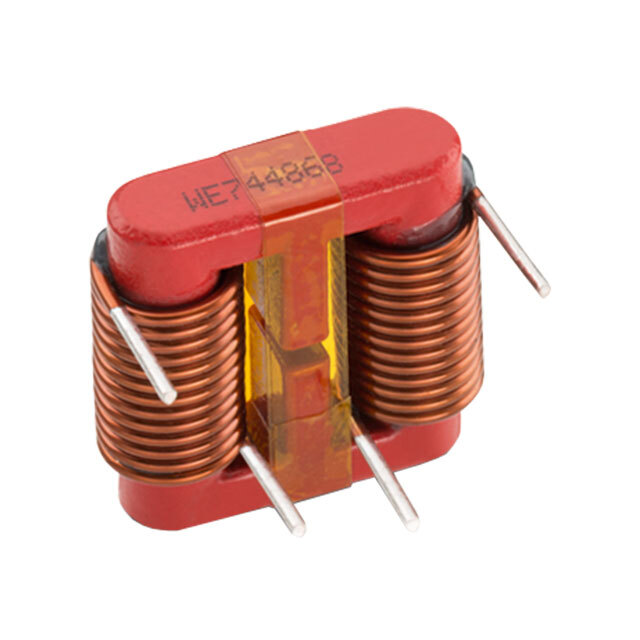

Same model may have multiple batches, images only for reference.
7448227005 Wurth Electronics Inc – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

7448227005

Part No 7448227005
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 450UH 6.5A 2LN TH
Datasheet
7448227005 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 450 µH @ 100 kHz
Current Rating (Max) 6.5A
DC Resistance (DCR) (Max) 10mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 0.728" L x 0.571" W (18.50mm x 14.50mm)
Height (Max) 0.866" (22.00mm)
Case / Package Vertical, 4 PC Pin
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1507189-7448227005
Ultra Librarian 3D Model Ultra Librarian 7448227005 CAD Model
