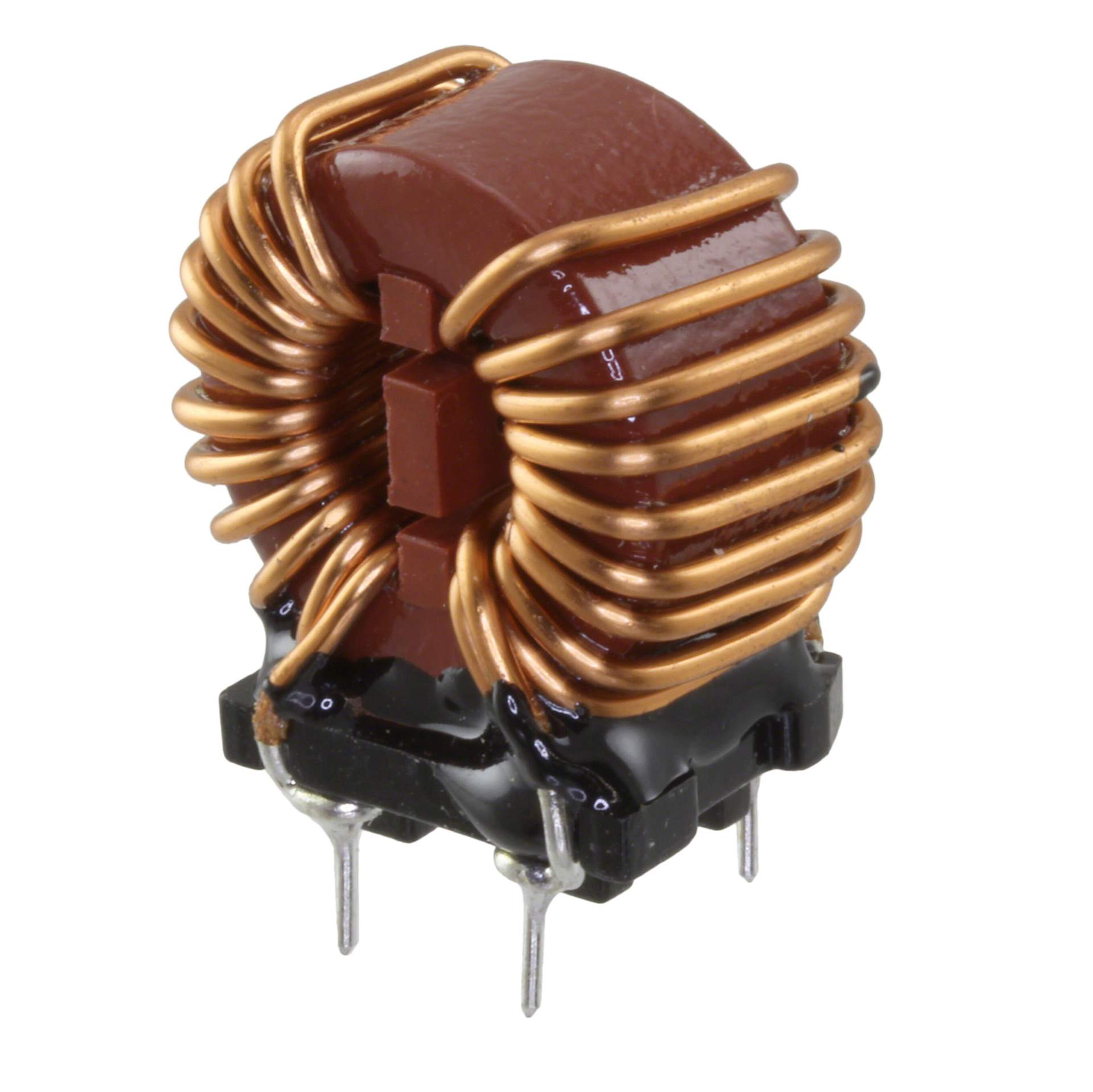

744821150 Real Image
Same model may have multiple batches, images only for reference.

744821150

Part No 744821150
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 5MH 1A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-CMB
Package Bulk
Product Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 5 mH @ 10 kHz
Current Rating (Max) 1A
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Height (Max) 0.709" (18.00mm)
Package / Case Vertical, 4 PC Pin
Standard Package 300 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 857616-744821150
Ultra Librarian 3D Model Ultra Librarian 744821150 CAD Model

Description

The WE-CMB series is a power line common mode choke designed by Wurth Electronics Inc.

  • Voltage Rating: 250V AC
  • Current Rating: 1A
  • Package: Vertical, 4 PC pin
  • Height: 0.709" (18.00mm)
  • Number of Lines: 2
  • Inductance: 5 mH @ 10 kHz
  • Operating Temperature: -40°C to 125°C
  • Standard Package: 300 pcs
