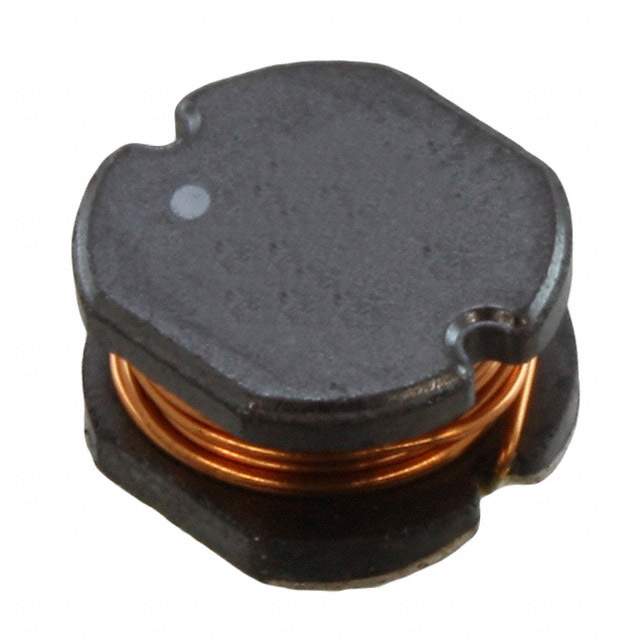

744776227 Real Image
Same model may have multiple batches, images only for reference.

744776227

Part No 744776227
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 270UH 620MA 970MOHM SM
Datasheet
744776227 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD2
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 270 µH
Tolerance ±10%
Current Rating (Amps) 620 mA
Current - Saturation (Isat) 680mA
Shielding Unshielded
DC Resistance (DCR) 970mOhm Max
Frequency - Self Resonant 4.3MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 10 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.394" L x 0.354" W (10.00mm x 9.00mm)
Height - Seated (Max) 0.232" (5.90mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857562-744776227
Ultra Librarian 3D Model Ultra Librarian 744776227 CAD Model

Description

The WE-PD2 series is a drum core, wirewound inductor designed for a wide range of electronic applications.

  • Size: 0.394" L x 0.354" W (10.00mm x 9.00mm)
  • Shielded: Unshielded
  • Inductance: 270 µH
  • Tolerance: ±10%
  • Seated Height: 0.232" (5.90mm)
  • DC Resistance (DCR): 970mOhm Max
  • Current Rating: 620 mA
  • Temperature Range: -40°C to 125°C
  • Mounting Type: Surface Mount
  • Package: Nonstandard
  • Core Material: Ferrite
  • Frequency Self-Resonant: 4.3MHz
