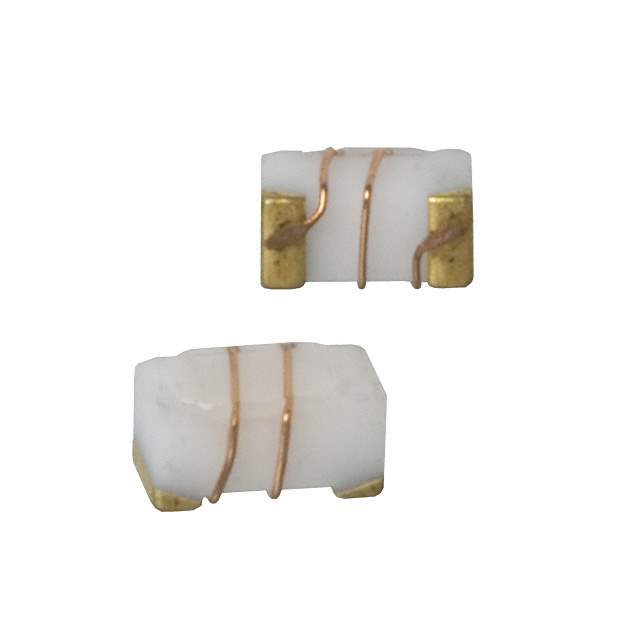

PE-0603CD220JTT

Name: PE-0603CD220JTT
Brand: Pulse
SKU: 1327516
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PE-0603CD220JTT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 22NH 700MA 190MOHM SMD / 22 nH Unshielded Drum Core, Wirewound Inductor 700 mA 190mOhm Max 0603 (1608 Metric)
Datasheet	PE-0603CD220JTT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Pulse Electronics
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	22 nH
Tolerance	±5%
Current Rating (Amps)	700 mA
Shielding	Unshielded
DC Resistance (DCR)	190mOhm Max
Q @ Freq	35 @ 250MHz
Frequency - Self Resonant	3GHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	250 MHz
Mounting	Surface Mount
Case / Package	0603 (1608 Metric)
Supplier Device Package	0603 (1608 Metric)
Size / Dimension	0.071" L x 0.049" W (1.80mm x 1.24mm)
Height - Seated (Max)	0.040" (1.02mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	553-1021-2,553-1021-1,553-1021-6,PE0603CD220JTT
Standard Package	2,000
Win Source Part Number	1327516-PE-0603CD220JTT
Ultra Librarian 3D Model	Ultra Librarian PE-0603CD220JTT CAD Model

Alternative Products

Description

The PE-0603CD220JTT is an inductor, coil, choke electronic component manufactured by Pulse Electronics.

Packaging: Reel-TR
Mounting: Surface Mount
Tolerance: ±5%
Core Material: Ceramic
DC Resistance (DCR): 190mOhm Max
RoHS Compliant: Yes
Operating Temperature Range: -40°C to 125°C
Current Rating: 700mA
Inductance Frequency: 250 MHz
