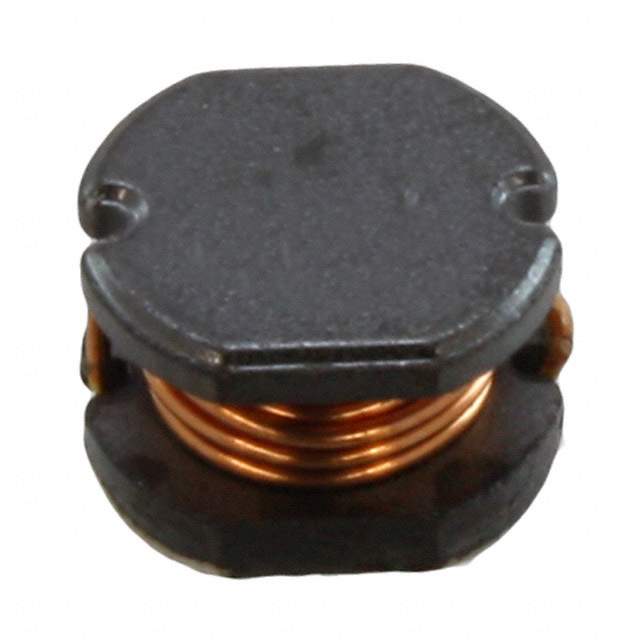

Same model may have multiple batches, images only for reference.

744775168

Name: 744775168
Brand: Wurth Electronics Inc
SKU: 1327637
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744775168
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 68UH 990MA 280MOHM SMD / 68 µH Unshielded Drum Core, Wirewound Inductor 990 mA 280mOhm Max Nonstandard
Datasheet	744775168 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	68 µH
Tolerance	±10%
Current Rating (Amps)	990 mA
Current - Saturation (Isat)	1.05A
Shielding	Unshielded
DC Resistance (DCR)	280mOhm Max
Frequency - Self Resonant	9.7MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	10 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max)	0.217" (5.50mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-1291-2,732-1291-1,732-1291-6
Standard Package	500
Win Source Part Number	1327637-744775168
Ultra Librarian 3D Model	Ultra Librarian 744775168 CAD Model

Alternative Products

Description

The 1327637-744775168 is a fixed inductor from Würth Elektronik that is suitable for use in various electronic devices.

Core Type: Drum Core
Inductor Type: Wirewound
Shielding: Unshielded
Size Dimension: 0.307" L x 0.276" W (7.80mm x 7.00mm)
Inductance: 68 µH
Win Source Part Number: 1327637-744775168
