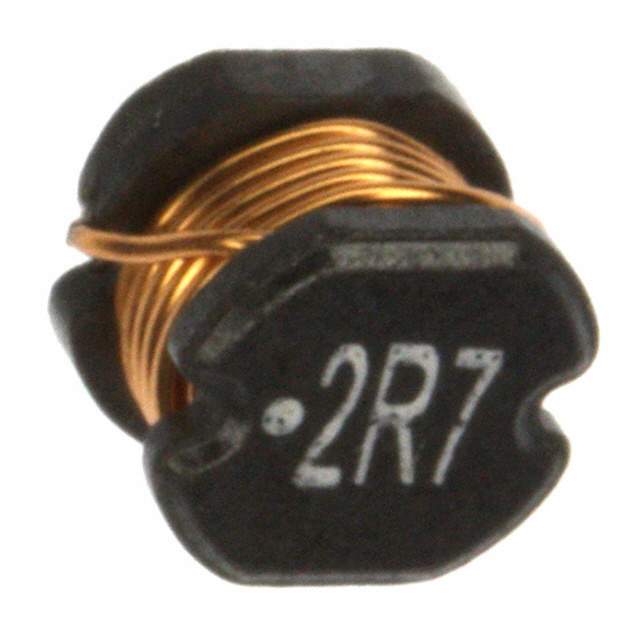

744774027 Real Image1 744774027 Real Image2
Same model may have multiple batches, images only for reference.
744774027 Real Image1 744774027 Real Image2
744774027 Real Image1 744774027 Real Image2
Same model may have multiple batches, images only for reference.

744774027

Part No 744774027
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 2.7UH 4A 45 MOHM SMD / 2.7 µH Unshielded Drum Core, Wirewound Inductor 4 A 45mOhm Max Nonstandard
Datasheet
744774027 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD2
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.7 µH
Tolerance ±20%
Current Rating (Amps) 4 A
Current - Saturation (Isat) 8A
Shielding Unshielded
DC Resistance (DCR) 45mOhm Max
Q @ Freq -
Frequency - Self Resonant 50MHz
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 10 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max) 0.191" (4.85mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 1,500 pcs
Win Source Part Number 1381116-744774027
Ultra Librarian 3D Model Ultra Librarian 744774027 CAD Model

Description

The WE-PD2 series is a drum core, wirewound inductor designed for various electronic applications. It is manufactured by Wurth Electronics Inc.

  • Size: 0.228" L x 0.205" W (5.80mm x 5.20mm)
  • Height: 0.191" (4.85mm)
  • Inductance: 2.7 µH
  • Tolerance: ±20%
  • Shielding: Unshielded
  • DC Resistance (DCR): 45mOhm max
  • Current Rating: 4 A
  • Operating Temperature: -40°C to 125°C
  • Mounting Type: Surface Mount
  • Package / Case: Nonstandard
