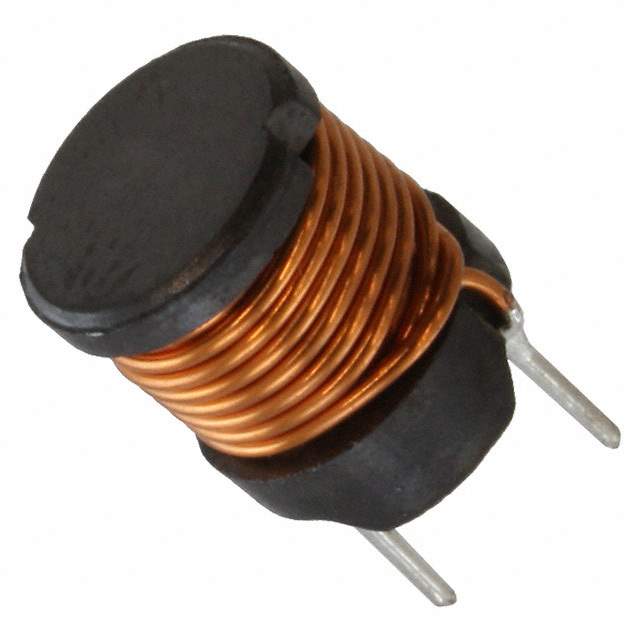

Same model may have multiple batches, images only for reference.

744772330

Name: 744772330
Brand: Wurth Electronics Inc
SKU: 1381114
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744772330
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 33UH 2A 60 MOHM TH / 33 µH Unshielded Drum Core, Wirewound Inductor 2 A 60mOhm Max Radial, Vertical Cylinder (Open)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-TI
Package	Tray
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	33 µH
Tolerance	±10%
Current Rating (Amps)	2 A
Current - Saturation (Isat)	2.5A
Shielding	Unshielded
DC Resistance (DCR)	60mOhm Max
Q @ Freq	-
Frequency - Self Resonant	10.2MHz
Ratings	-
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder (Open)
Supplier Device Package	-
Size / Dimension	0.307" Dia (7.80mm)
Height - Seated (Max)	0.394" (10.00mm)
Moisture Sensitivity Level (MSL)	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Standard Package	140 pcs
Win Source Part Number	1381114-744772330
Ultra Librarian 3D Model	Ultra Librarian 744772330 CAD Model

Alternative Products

Description

The WE-TI series is a drum core, wirewound inductor designed for use in various electronic applications. It is manufactured by Wurth Electronics Inc.

Diameter: 0.307" (7.80mm)
Height: 0.394" (10.00mm)
Shielding: Unshielded
Inductance: 33 µH
Tolerance: ±10%
DC Resistance (DCR): 60mOhm max
Current Rating: 2 A
Mounting Type: Through Hole
Operating Temperature: -40°C to 125°C
Package / Case: Radial, Vertical Cylinder (Open)
