Same model may have multiple batches, images only for reference.

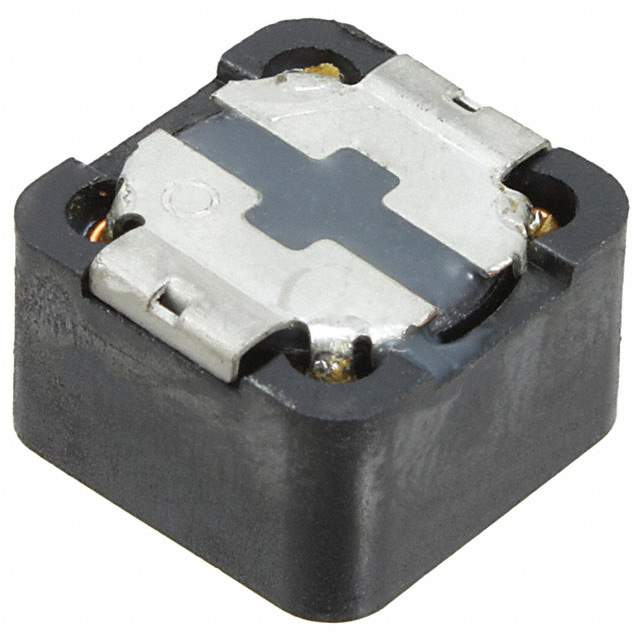

74477009 Real Image
Same model may have multiple batches, images only for reference.

74477009

Part No 74477009
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 470NH 23.5A 3 MOHM SMD
Datasheet
74477009 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 nH
Tolerance -25%, +20%
Current Rating (Amps) 23.5 A
Current - Saturation (Isat) 26.4A
Shielding Shielded
DC Resistance (DCR) 3mOhm Max
Frequency - Self Resonant 120MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.315" (8.00mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857522-74477009
Ultra Librarian 3D Model Ultra Librarian 74477009 CAD Model

Description

The WE-PD series is a line of drum core, wirewound inductors designed for use in various electronic applications.

  • Size: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • Inductance: 470 nH
  • DC Resistance: 3mOhm Max
  • Shielding: Shielded
  • Temperature Range: -40°C to 125°C
  • Mounting Type: Surface Mountable
  • Package: Tape & reel
  • Current Rating: 23.5 A
  • Saturation Current: 26.4A
