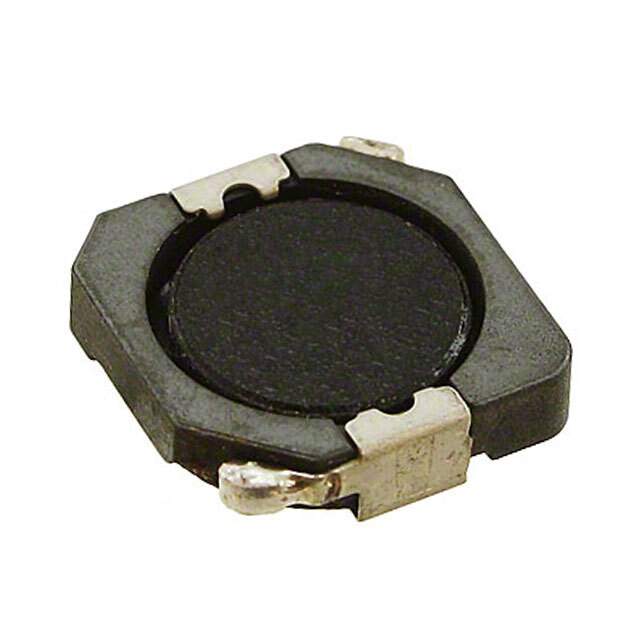

7447713151 Real Image
Same model may have multiple batches, images only for reference.

7447713151

Part No 7447713151
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 150UH 700MA 684MOHM SM / 150 µH Shielded Drum Core, Wirewound Inductor 700 mA 684mOhm Max Nonstandard
Datasheet
7447713151 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 150 µH
Tolerance ±20%
Current Rating (Amps) 700 mA
Current - Saturation (Isat) 1.1A
Shielding Shielded
DC Resistance (DCR) 684mOhm Max
Frequency - Self Resonant 6.1MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.118" (3.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-2979-6,732-2979-2,732-2979-1
Standard Package 1,000
Win Source Part Number 1328955-7447713151
Ultra Librarian 3D Model Ultra Librarian 7447713151 CAD Model

Description

The 7447713151 is a fixed inductor that is designed for high-performance applications.

  • Type: Drum Core, Wirewound
  • Shielding: Yes
  • Inductance: 150 μH
  • Current Rating: 700mA
  • Mounting Feature: SMT
  • Operating Temperature Range: -40°C to 125°C
