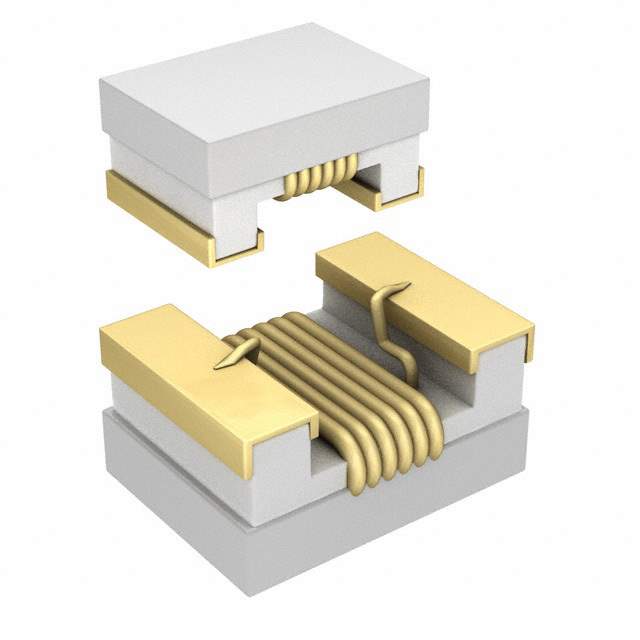

744761056C Real Image
Same model may have multiple batches, images only for reference.

744761056C

Part No 744761056C
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 5.6NH 700MA 190MOHM SM / 5.6 nH Unshielded Drum Core, Wirewound Inductor 700 mA 190mOhm Max 0603 (1608 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 5.6 nH
Tolerance ±5%
Current Rating (Amps) 700 mA
Shielding Unshielded
DC Resistance (DCR) 190mOhm Max
Q @ Freq 16 @ 250MHz
Frequency - Self Resonant 5.7GHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 250 MHz
Mounting Surface Mount
Case / Package 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Size / Dimension 0.065" L x 0.045" W (1.65mm x 1.15mm)
Height - Seated (Max) 0.043" (1.10mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 732-1751-1,732-1751-2,732-1751-6
Standard Package 3,000
Win Source Part Number 1330222-744761056C
Ultra Librarian 3D Model Ultra Librarian 744761056C CAD Model

Description

The 744761056C is a fixed inductor from Würth Elektronik.

  • Manufacturer: Würth Elektronik
  • Inductance: 5.6 nH
  • Tolerance: ±5%
  • Type: Drum Core, Wirewound
  • Shielding: Unshielded
  • DC Resistance: 190mOhm max
  • Current Rating: 700 mA
  • Q @ Freq: 16 @ 250MHz
  • Self-Resonant Frequency: 5.7GHz
  • Package / Case: 0603 (1608 Metric)
  • Operating Temperature: -40°C to 125°C
  • Packaging: Reel
  • Standard Package: 3,000
