Same model may have multiple batches, images only for reference.

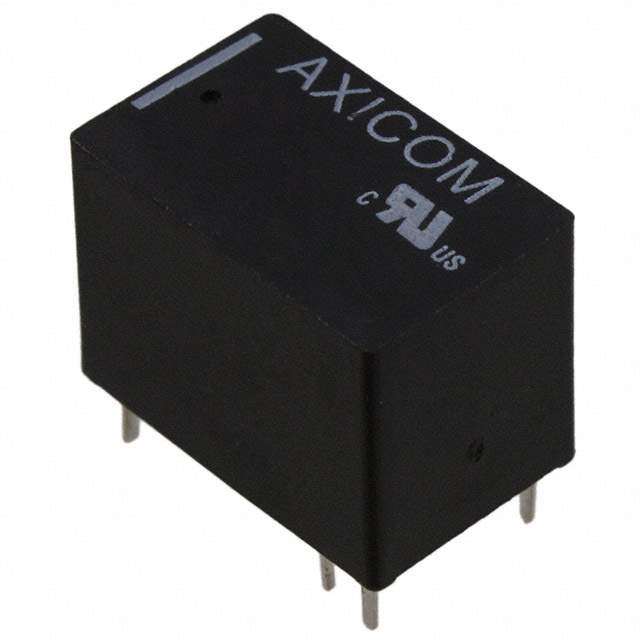

V23101D 107A301 Real Image
Same model may have multiple batches, images only for reference.

V23101D 107A301

Part No V23101D 107A301
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series V23101, AXICOM
Package Tube
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 3 A
Switching Voltage 125VAC, 120VDC - Max
Coil Current 8.6 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 7 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 2.8 kOhms
Base Product Number V23101
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1314806-V23101D 107A301
Ultra Librarian 3D Model Ultra Librarian V23101D 107A301 CAD Model

Description

The V23101D 107A301 is a general-purpose power relay that operates on 24VDC coil voltage.

  • Application: General Purpose Power Relay
  • Coil Voltage: 24VDC
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver Nickel (AgNi)
  • Switching Voltage: 125VAC and 120VDC
  • Contact Rating (Max): 3 A
  • Operate Time: 7 ms
  • Release Time: 5 ms
  • Coil Resistance: 2.8 kOhms
  • Coil Current: 8.6 mA
  • Latching: Non-Latching
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 85°C
  • Package: Tube
  • ECCN: EAR99
  • Manufacturer: TE Connectivity Potter & Brumfield Relays
