Same model may have multiple batches, images only for reference.

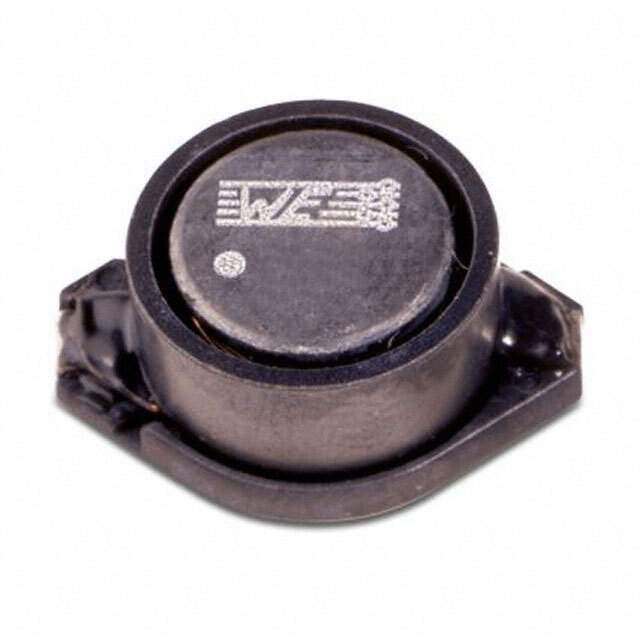

74454147 Real Image
Same model may have multiple batches, images only for reference.

74454147

Part No 74454147
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 47UH 1A 190 MOHM SMD
Datasheet
74454147 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD3
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±15%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 1.4A
Shielding Shielded
DC Resistance (DCR) 190mOhm Max
Frequency - Self Resonant 10MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max) 0.205" (5.20mm)
Standard Package 600 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857456-74454147
Ultra Librarian 3D Model Ultra Librarian 74454147 CAD Model

Description

The WE-PD3 series from Wurth Electronics Inc is a drum core, wirewound inductor with a shielding feature.

  • Size: 0.500" L x 0.394" W (12.70mm x 10.00mm)
  • Seated Height: 0.205" (5.20mm)
  • Inductance: 47 μH (±15%)
  • DC Resistance (DCR): 190mOhm Max
  • Current Rating: 1A
  • Temperature Range: -40°C to 125°C
  • Package: Nonstandard
  • Packaging: Tape & reel
  • Core Material: Ferrite
  • Mounting Type: Surface Mount
