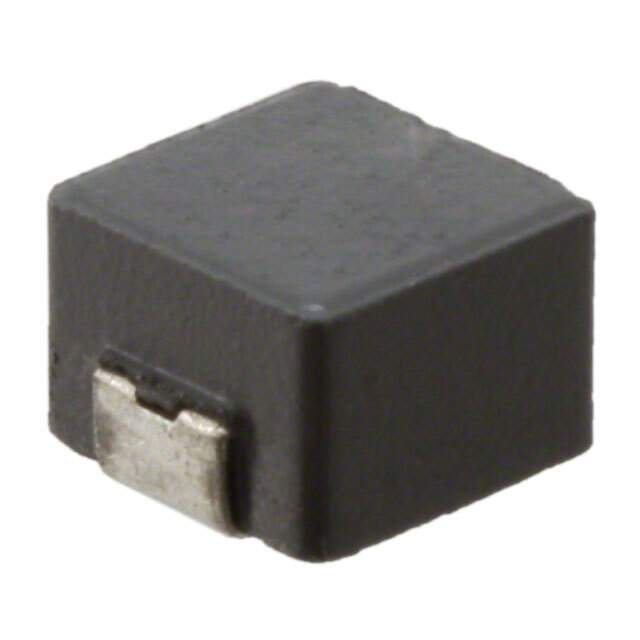

74437349100 Real Image
Same model may have multiple batches, images only for reference.

74437349100

Part No 74437349100
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 10UH 3.2A 69 MOHM SMD
Datasheet
74437349100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-LHMI
Package Tape & Reel
Product Status Active
Type Molded
Material - Core Iron Powder
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 3.2 A
Current - Saturation (Isat) 8A
Shielding Shielded
DC Resistance (DCR) 69mOhm Max
Frequency - Self Resonant 12MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max) 0.197" (5.00mm)
Standard Package 800 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857400-74437349100
Ultra Librarian 3D Model Ultra Librarian 74437349100 CAD Model

Description

The WE-LHMI series from Wurth Electronics Inc is a shielded fixed inductor with a molded construction.

  • Mounting: Surface mount
  • Package: Nonstandard
  • Size: 0.287" L x 0.260" W (7.30mm x 6.60mm)
  • Height: 0.197" (5.00mm)
  • Inductance: 10 μH
  • Tolerance: ±20%
  • DC Resistance (DCR): 69mOhm Max
  • Current Rating: 3.2 A
  • Operating Temperature Range: -40°C to 125°C
  • Core Material: Iron powder
  • Self-Resonant Frequency: 12MHz
  • Standard Package: 800 pcs
  • Status: Active
