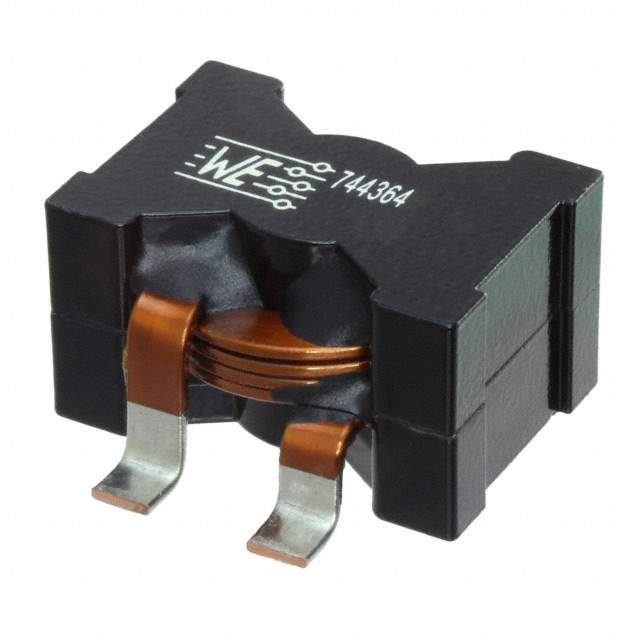

Same model may have multiple batches, images only for reference.

74436411000

Name: 74436411000
Brand: Wurth Electronics Inc
SKU: 1329253
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74436411000
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 10UH 36A 1.441MOHM SMD / 10 µH Shielded Drum Core, Wirewound Inductor 36 A 1.441mOhm Max Nonstandard
Datasheet	74436411000 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Tray
Type	Drum Core, Wirewound
Material - Core	Manganese Zinc Ferrite (MnZn)
Inductance	10 µH
Tolerance	±15%
Current Rating (Amps)	36 A
Current - Saturation (Isat)	21.5A
Shielding	Shielded
DC Resistance (DCR)	1.441mOhm Max
Frequency - Self Resonant	13.55MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Supplier Device Package	2815
Size / Dimension	1.102" L x 0.764" W (28.00mm x 19.40mm)
Height - Seated (Max)	0.606" (15.40mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-11533
Standard Package	20
Win Source Part Number	1329253-74436411000
Ultra Librarian 3D Model	Ultra Librarian 74436411000 CAD Model

Alternative Products

Description

This electronic component is a fixed inductor belonging to the inductors, coils, chokes category.

Manufacturer: Würth Elektronik
Packaging: Tray
Shielding: Yes
Size/Dimension: 1.102" L x 0.764" W (28.00mm x 19.40mm)
Inductance: 10 µH
Tolerance: ±15%
Material: Manganese Zinc Ferrite (MnZn)
DC Resistance (DCR): 1.441mOhm Max
Supplier Device Package: 2815
