Same model may have multiple batches, images only for reference.

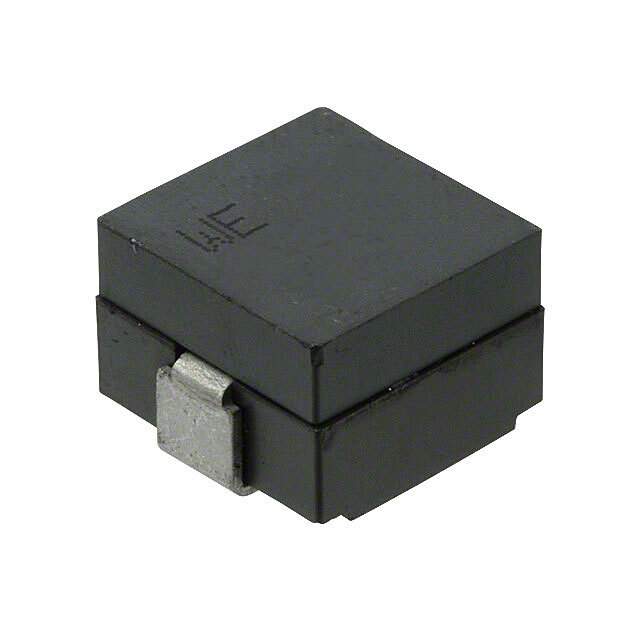

744309047 Real Image
Same model may have multiple batches, images only for reference.

744309047

Part No 744309047
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 470NH 47.5A 0.165 MOHM
Datasheet
744309047 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-HCM
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Manganese Zinc Ferrite (MnZn)
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 47.5 A
Current - Saturation (Isat) 40.5A
Shielding Shielded
DC Resistance (DCR) 0.165mOhm
Frequency - Self Resonant 95MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.551" L x 0.512" W (14.00mm x 13.00mm)
Height - Seated (Max) 0.374" (9.50mm)
Standard Package 300 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857329-744309047
Ultra Librarian 3D Model Ultra Librarian 744309047 CAD Model

Description

The WE-HCM series from Wurth Electronics Inc is a drum core, wirewound fixed inductor with a size of 0.551" L x 0.512" W (14.00mm x 13.00mm).

  • Inductance: 470 nH ±20%
  • Shielded: Yes
  • Operating Temperature: -40°C to 125°C
  • Mounting Type: Surface Mount
  • Package: Nonstandard
  • DC Resistance (DCR): 0.165mOhm
  • Current Rating: 47.5 A
  • Core Material: Manganese zinc ferrite (MnZn)
  • Frequency Self-Resonant: 95MHz
