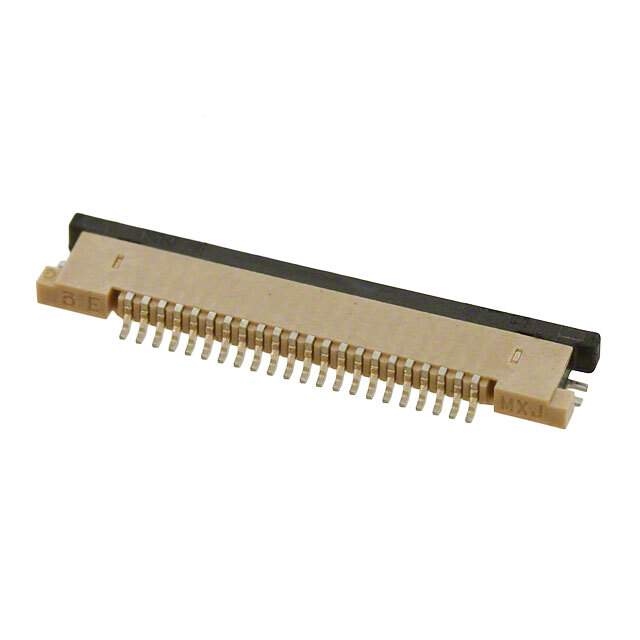

0545482271 Real Image
Same model may have multiple batches, images only for reference.

0545482271

Part No 0545482271
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 22POS 0.5MM R/A / 22 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Molex, LLC
Series Easy-On 54548
Package Tape & Reel
Product Status Obsolete
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 22
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.047" (1.20mm)
Locking Feature Slide Lock
Cable End Type Straight, Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Mating Cycles 20
Base Product Number 054548
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 856518-0545482271
Ultra Librarian 3D Model Ultra Librarian 0545482271 CAD Model

Description

The Easy-On 54548 is a FFC, FPC (Flat Flexible) connector assembly designed for applications requiring a reliable and secure connection.

  • Pitch: 0.020" (0.50mm)
  • Positions: 22
  • Solder Retention: Yes
  • Zero Insertion Force (ZIF): Yes
  • Contact Plating: Gold
  • Voltage Rating: 50V
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Materials: Phosphor Bronze and Liquid Crystal Polymer (LCP)
  • Product Line: Molex, LLC's obsolete product line
