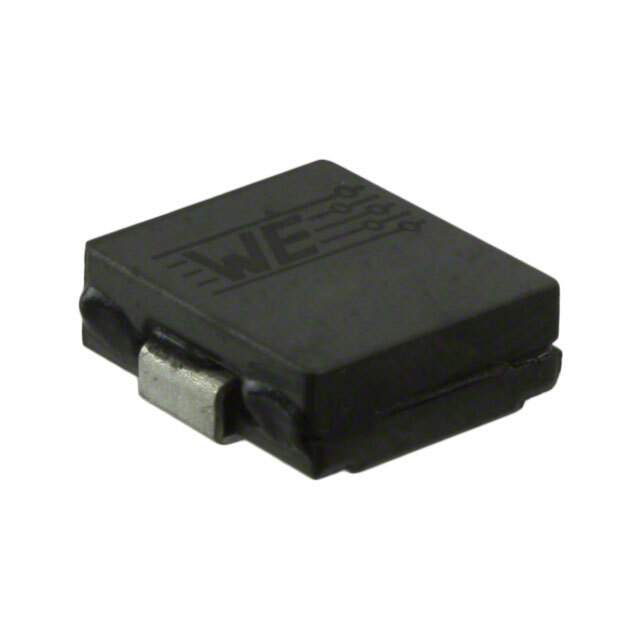

744304010 Real Image
Same model may have multiple batches, images only for reference.

744304010

Part No 744304010
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description POWER-CHOKE WE-HCM | FIXED IND 100NH 24A 0.17 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel
Type Wirewound
Material - Core Manganese Zinc Ferrite (MnZn)
Inductance 100nH
Tolerance ±20%
Current Rating (Amps) 24A
Current - Saturation 52A
Shielding Shielded
DC Resistance (DCR) 0.17mOhm
Frequency - Self Resonant 105MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.453" L x 0.465" W (11.50mm x 11.80mm)
Height - Seated (Maximum) 0.161" (4.10mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129934-744304010
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 744304010 CAD Model

Description

The Wurth Electronics Inc. 744304010 is a wirewound inductor with a manganese zinc ferrite (MnZn) core material.

  • Shielding: Yes
  • Inductance: 100nH ±20%
  • Core Material: Manganese Zinc Ferrite (MnZn)
  • DC Resistance (DCR): 0.17mOhm
  • Current - Saturation: 52A
  • Frequency - Self Resonant: 105MHz
  • Temperature Range - Operating: -40°C ~ 125°C
  • Height - Seated (Maximum): 0.161" (4.10mm)
  • Packaging: Reel
