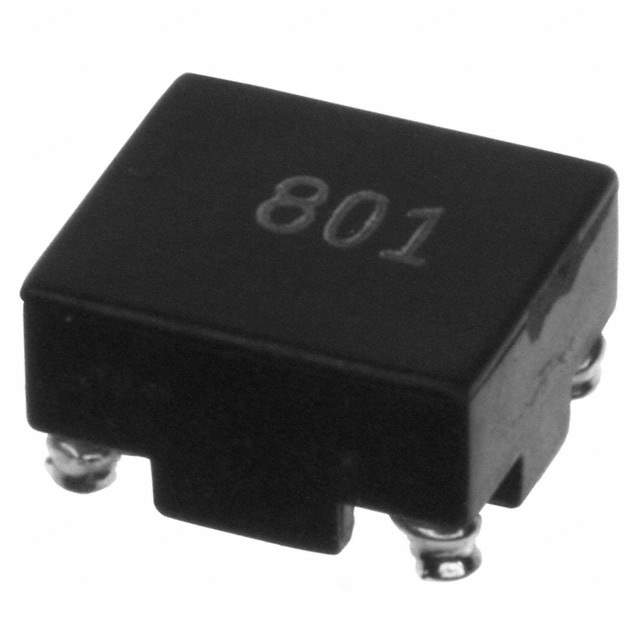

744273801

Part No 744273801
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description COMMON MODE CHOKE WE-SL5 HC | CMC 9UH 3.5A 2LN 800 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Wurth Electronics Inc.
Packaging Reel
Filter Type Power, Signal Line
Number of Lines 2
Impedance at Frequency 800 Ohms at 120MHz
Inductance at Frequency 9μH at 100kHz
Current Rating (Maximum) 3.5A
DC Resistance (DCR) (Maximum) 11mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Parts Dimension 0.374" L x 0.327" W (9.50mm x 8.30mm)
Height (Maximum) 0.209" (5.30mm)
Manufacturer Package Horizontal, 4 PC Pad
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129933-744273801
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 744273801 CAD Model

Description

The Wurth Electronics Inc. 744273801 is a power and signal line filter designed to provide protection against EMI and RFI interference.

  • Voltage Rating: 80V DC
  • Maximum Current: 3.5A
  • Impedance: 800 Ohms @ 120MHz
  • Inductance: 9μH @ 100kHz
  • Package: Horizontal, 4 PC pad package
  • Mounting: SMD technology
  • Approval: Approved for use in various applications
  • Temperature Range: -40°C to 125°C
  • Size: Compact size
  • Application: Ideal for use in small electronic devices.
