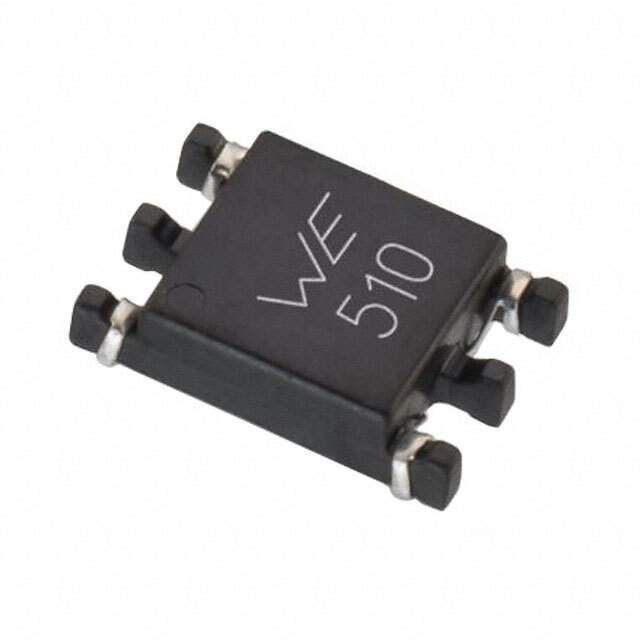

744252510 Real Image
Same model may have multiple batches, images only for reference.

744252510

Part No 744252510
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 51UH 500MA 2LN SMD
Datasheet
744252510 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL3
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 51 µH @ 100 kHz
Current Rating (Max) 500mA
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Height (Max) 0.098" (2.50mm)
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 857311-744252510
Ultra Librarian 3D Model Ultra Librarian 744252510 CAD Model

Description

The WE-SL3 series from Wurth Electronics Inc is a common mode choke designed for signal line filtering.

  • Mounting Type: Surface Mountable
  • Height: 0.098" (2.50mm)
  • Current Rating: 500mA (Maximum)
  • Voltage Rating: 80V DC
  • Lines: 2
  • Inductance: 51 µH @ 100 kHz
  • Operating Temperature: -40°C to 125°C
  • Series: WE-SL3
  • Package: 1,500 pcs
