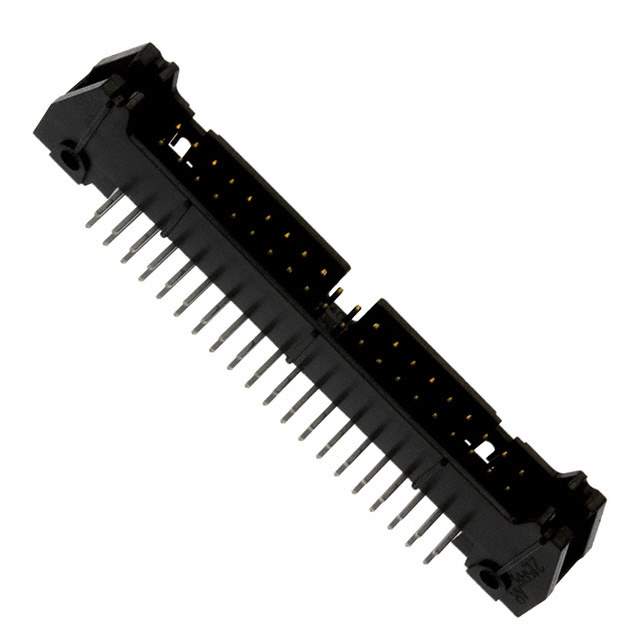

D3432-5002-AR

Part No D3432-5002-AR
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN HDR 40POS R/A NO LATCH 10AU
Datasheet
D3432-5002-AR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer 3M
Series D3000
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 40
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.112" (2.84mm)
Insulation Height 0.340" (8.64mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10μin (0.25μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features Keying Slot, Mounting Flange
Operating Temperature Range -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 1.75A
Contact Finish Thickness - Post 39μin (1.00μm)
Win Source Part Number 763351-D3432-5002-AR
Popularity Medium
Supply and Demand Status Balance
Family Name D3000
Introduction Date December 20, 2007
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian D3432-5002-AR CAD Model

Description

This header type connector with 40 positions is designed by an unknown manufacturer.

  • Connector Type: Header
  • Positions: 40
  • Shrouding: Shrouded - 4 Wall
  • Mounting Type: Board to Cable/Wire
  • Category: Connectors, Interconnects
  • Supply and Demand Status: Balanced
  • ECCN: EAR99
  • Estimated EOL Date: 2026
  • Operating Temperature: -55°C to 105°C
  • Current Rating: 1.75A
  • Material Flammability Rating: UL94 V-0
  • Packaging: Tray
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: Gold
  • Contact Finish-Mating Thickness: 10μin (0.25μm)
  • Contact Finish-Post: Tin
  • Contact Finish-Post Thickness: 39μin (1.00μm)
  • Insulation Height: 0.340" (8.64mm)
  • Contact Shape: Square
