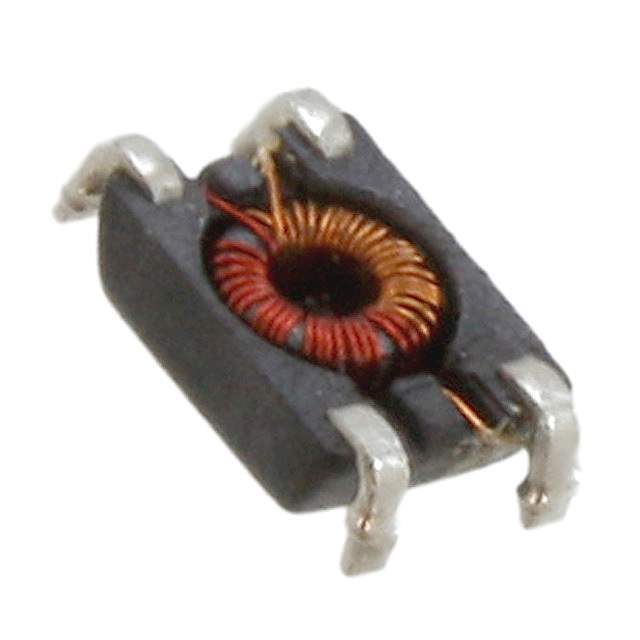

744212331 Real Image
Same model may have multiple batches, images only for reference.

744212331

Part No 744212331
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description Common Mode Chokes Dual 330uH 2kOhm 10kHz 0.3A 0.3Ohm DCR SMD T/R / WE-SL1 SMD Common Mode Line Filter | CMC 330UH 300MA 2LN 2 KOHM SMD
Datasheet
744212331 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Wurth Electronics Inc.
Packaging Reel
Filter Type Power, Signal Line
Number of Lines 2
Impedance at Frequency 2 kOhms at 20MHz
Inductance at Frequency 330μH at 100kHz
Current Rating (Maximum) 300mA
DC Resistance (DCR) (Maximum) 300mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 105°C
Mounting Style SMD
Parts Dimension 0.256" L x 0.142" W (6.50mm x 3.60mm)
Height (Maximum) 0.071" (1.80mm)
Manufacturer Package Horizontal, 4 J-Lead
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129907-744212331
Manufacturer Homepage www.we-online.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name 744212331
Introduction Date January 31, 2006
ECCN EAR99
Estimated EOL Date 2036
Ultra Librarian 3D Model Ultra Librarian 744212331 CAD Model

Description

The electronic component with Id 527542 is a product manufactured by Wurth Electronics Inc.

  • Package: Horizontal, 4 J-Lead
  • Mounting Type: SMD
  • Voltage Rating: 80V DC
  • Application: Power and Signal Line Filtering
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
  • Part Dimension: 0.256" L x 0.142" W (6.50mm x 3.60mm)
  • Impedance: 2 kOhms @ 20MHz
  • Inductance: 330μH @ 100kHz
