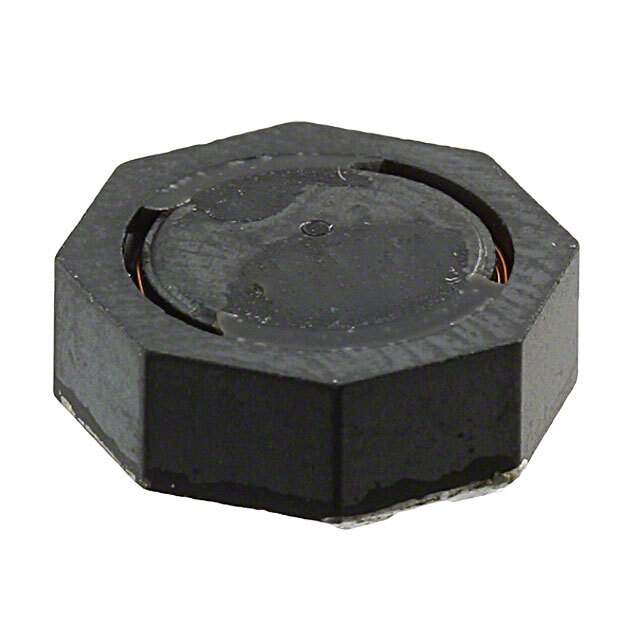

744066470 Real Image
Same model may have multiple batches, images only for reference.

744066470

Part No 744066470
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 47UH 1.75A 160MOHM SMD
Datasheet
744066470 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-TPC
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±30%
Current Rating (Amps) 1.75 A
Current - Saturation (Isat) 1.85A
Shielding Shielded
DC Resistance (DCR) 160mOhm Max
Frequency - Self Resonant 8MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.161" (4.10mm)
Base Product Number 744066
Standard Package 800 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857272-744066470
Ultra Librarian 3D Model Ultra Librarian 744066470 CAD Model

Description

The WE-TPC series is a range of fixed inductors designed for use in electronic circuits.

  • Core Type: Drum core, wirewound
  • Size: 0.394" L x 0.394" W (10.00mm x 10.00mm)
  • Height: 0.161" (4.10mm)
  • Inductance: 47 µH
  • DC Resistance (DCR): 160mOhm max
  • Shielding: Shielded
  • Operating Temperature: -40°C to 125°C
  • Current Rating: 1.75A
  • Frequency Self-Resonant: 8MHz
  • Package: Tape & Reel
  • Standard Package: 800 pcs
  • Product Status: Active
  • Manufacturer: Wurth Electronics Inc.
