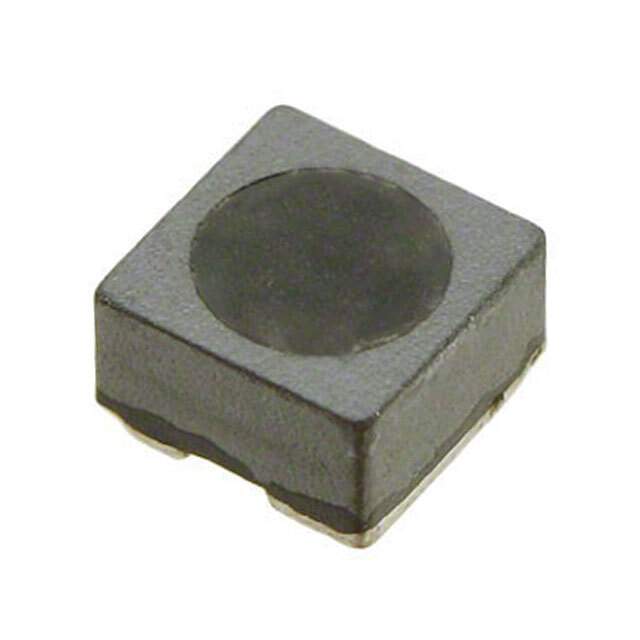

744043120 Real Image
Same model may have multiple batches, images only for reference.

744043120

Part No 744043120
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 12UH 1.12A 125MOHM SMD
Datasheet
744043120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-TPC
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 12 µH
Tolerance ±30%
Current Rating (Amps) 1.12 A
Current - Saturation (Isat) 950mA
Shielding Shielded
DC Resistance (DCR) 125mOhm Max
Frequency - Self Resonant 30MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case 1919 (4848 Metric)
Size / Dimension 0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Max) 0.118" (3.00mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857241-744043120
Ultra Librarian 3D Model Ultra Librarian 744043120 CAD Model

Description

The WE-TPC series from Wurth Electronics Inc offers a drum core, wirewound inductor with shielding.

  • Size: 0.189" L x 0.189" W (4.80mm x 4.80mm)
  • Inductance: 12 µH
  • Maximum Seated Height: 0.118" (3.00mm)
  • Mounting: Surface mount
  • Package: Tape & reel
  • Tolerance: ±30%
  • DC Resistance (DCR): 125mOhm Max
  • Operating Temperature Range: -40°C to 125°C
  • Current Rating: 1.12 A
  • Saturation Current: 950mA
