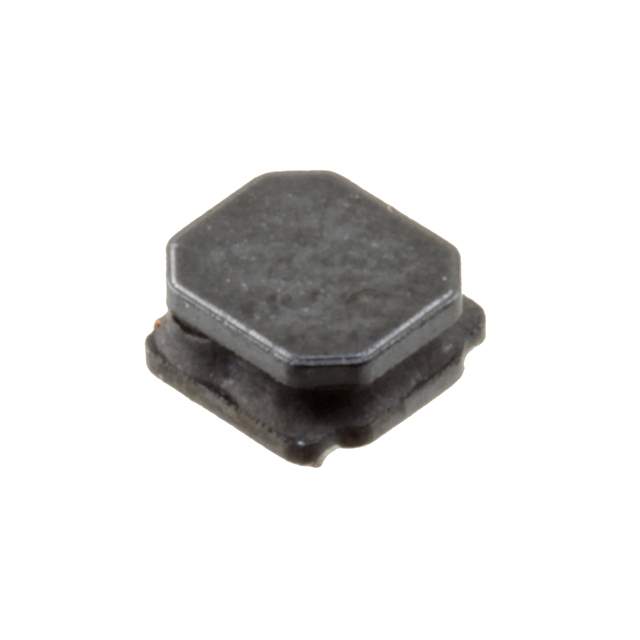

74404052680 Real Image1 74404052680 Real Image2
Same model may have multiple batches, images only for reference.
74404052680 Real Image1 74404052680 Real Image2
74404052680 Real Image1 74404052680 Real Image2
Same model may have multiple batches, images only for reference.

74404052680

Part No 74404052680
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 68UH 620MA 769MOHM SMD / 68 µH Semi-Shielded Wirewound Inductor 620 mA 769mOhm Nonstandard
Datasheet
74404052680 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-LQS
Package Tape & Reel
Type Wirewound
Material - Core -
Inductance 68 µH
Tolerance ±20%
Current Rating (Amps) 620 mA
Current - Saturation (Isat) 800mA
Shielding Semi-Shielded
DC Resistance (DCR) 769mOhm
Q @ Freq -
Frequency - Self Resonant 9.2MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 5020
Size / Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.079" (2.00mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 2,500 pcs
Win Source Part Number 1381092-74404052680
Ultra Librarian 3D Model Ultra Librarian 74404052680 CAD Model

Description

The WE-LQS is a wirewound fixed inductor with a semi-shielded design manufactured by Wurth Electronics Inc.

  • Inductance: 68 µH
  • Tolerance: ±20%
  • Current Rating: 620 mA
  • DC Resistance (DCR): 769 mOhm
  • Operating Temperature: -40°C to 125°C
  • Packaging: Tape and Reel
  • Quantity per Package: 2,500 pieces
