Same model may have multiple batches, images only for reference.

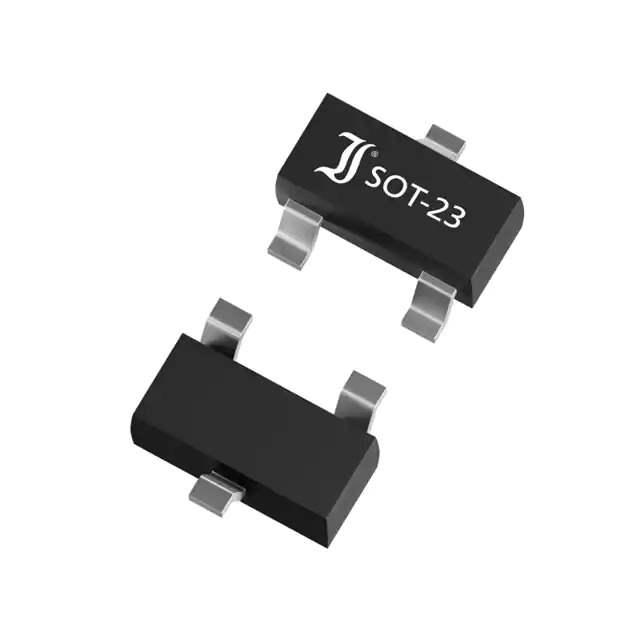

PSOT15 Real Image
Same model may have multiple batches, images only for reference.

PSOT15

Part No PSOT15
Manufacturer DIOTEC Electronics Corporation
Catalog TVS - Diodes
Description TVS DIODE 15VWM 30VC SOT23-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr DIOTEC Electronics Corporation
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 15V
Voltage - Breakdown (Min) 16.7V
Voltage - Clamping (Max) @ Ipp 30V
Current - Peak Pulse (10/1000µs) 17A (8/20µs)
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 100pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3 (TO-236)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
HTSUS 8541.10.0000
Win Source Part Number 657519-PSOT15
Ultra Librarian 3D Model Ultra Librarian PSOT15 CAD Model

Description

The 657519-PSOT15 is a Zener type transient voltage suppressor (TVS) diode designed for general-purpose circuit protection.

  • Mounting Type: Surface Mountable
  • Package: TO-236-3, SC-59, SOT-23-3
  • Reverse Standoff Voltage: 15V
  • Breakdown Voltage: 16.7V
  • Clamping Voltage @ Peak Pulse Current: 30V
  • Peak Pulse Power: 500W
  • Channel: Unidirectional
  • Capacitance: 100pF @ 1MHz
  • Operating Temperature Range: -55°C to 150°C

With its compact size and high performance, the 657519-PSOT15 is an ideal choice for various electronic applications.
