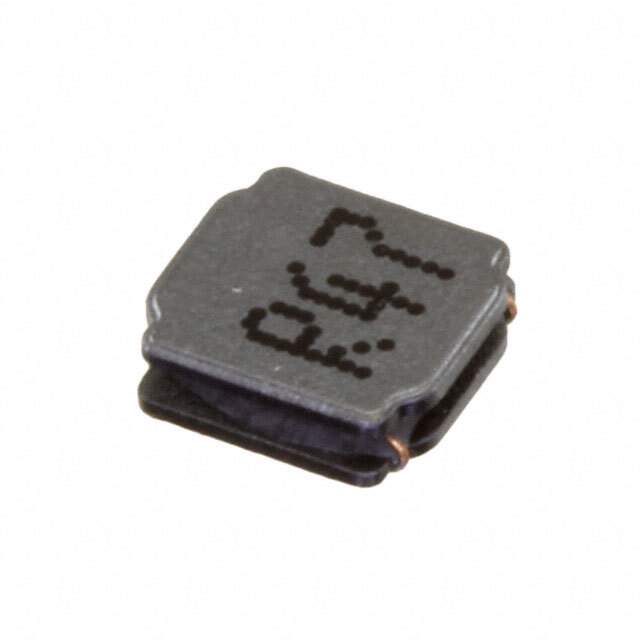

744040410047 Real Image
Same model may have multiple batches, images only for reference.

744040410047

Part No 744040410047
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 470NH 3.25A 28MOHM SMD
Datasheet
744040410047 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-LQS
Package Tape & Reel
Product Status Active
Type Wirewound
Inductance 470 nH
Tolerance ±30%
Current Rating (Amps) 3.25 A
Current - Saturation (Isat) 4.25A
Shielding Semi-Shielded
DC Resistance (DCR) 28mOhm
Frequency - Self Resonant 274MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 4012
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.047" (1.20mm)
Standard Package 4,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857220-744040410047
Ultra Librarian 3D Model Ultra Librarian 744040410047 CAD Model

Description

The WE-LQS series is a wirewound fixed inductor designed for applications that require high inductance and low DC resistance.

  • Size: 0.157" L x 0.157" W (4.00mm x 4.00mm)
  • Inductance: 470 nH
  • Tolerance: ±30%
  • Construction: High-quality wirewound
  • DC Resistance (DCR): 28mOhm
  • Current Rating: 3.25 A
  • Saturation Current (Isat): 4.25A
  • Temperature Range: -40°C to 125°C
  • Mounting: Surface mountable
  • Package: Nonstandard
