Same model may have multiple batches, images only for reference.

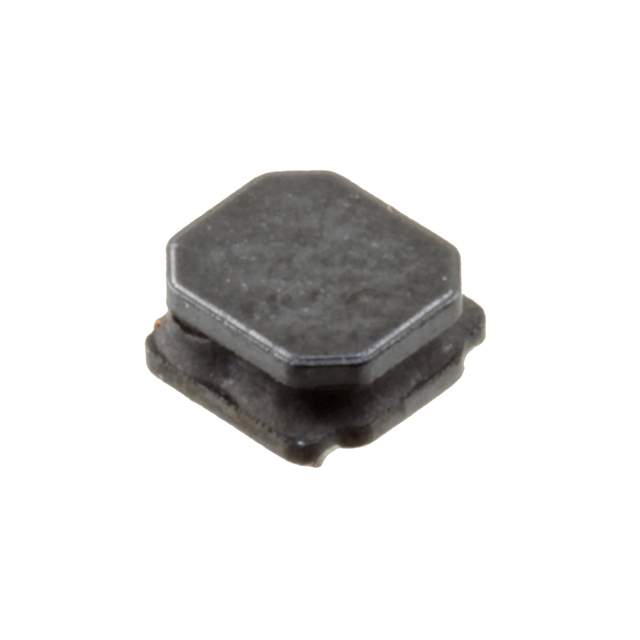

744040320047 Real Image
Same model may have multiple batches, images only for reference.

744040320047

Part No 744040320047
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 470NH 3A 18 MOHM SMD
Datasheet
744040320047 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-LQS
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 3 A
Current - Saturation (Isat) 2.8A
Shielding Semi-Shielded
DC Resistance (DCR) 18mOhm
Frequency - Self Resonant 304MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 3015
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.059" (1.50mm)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857217-744040320047
Ultra Librarian 3D Model Ultra Librarian 744040320047 CAD Model

Description

The WE-LQS series is a line of drum core, wirewound inductors designed for use in electronic circuits.

  • Size: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • Inductance: 470 nH
  • DC Resistance: 18mOhm
  • Current Rating: 3 A
  • Shielded: Semi-Shielded
  • Mounting: Surface Mount
  • Tolerance: ±20%
  • Operating Temperature Range: -40°C to 125°C
  • Self-Resonant Frequency: 304MHz
