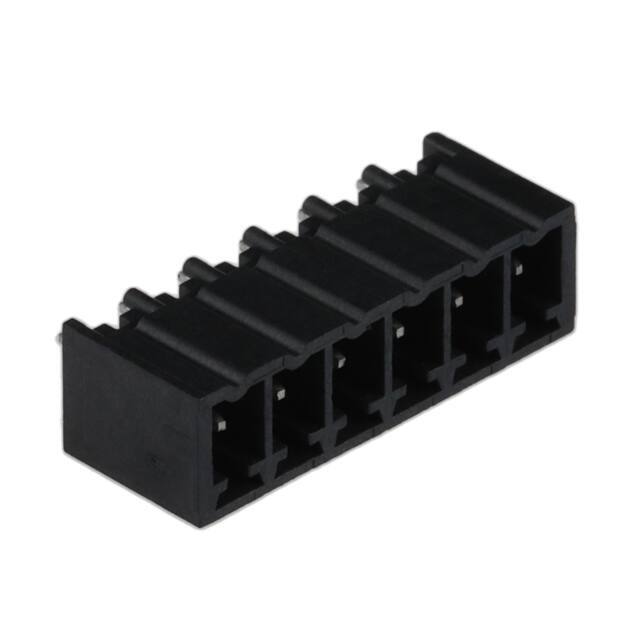

Same model may have multiple batches, images only for reference.

691701310006B

Name: 691701310006B
Brand: Wurth Electronics Inc
SKU: 1377558
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	691701310006B
Manufacturer	Wurth Electronics Inc
Catalog	Headers, Plugs and Sockets
Description	3.81 MM TERMINAL BLOCK HEADER, V / 6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole
Datasheet	691701310006B Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	Würth Elektronik
Series	WR-TBL Series 7013B
Package	Tape & Reel
Product Status	Active
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	6
Positions Per Level	6
Number of Levels	1
Pitch	0.150" (3.81mm)
Header Orientation	Vertical
Plug Wire Entry	-
Termination Style	Solder
Mounting Type	Through Hole
Current - IEC	-
Current - UL	10 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	-
Wire Gauge or Range - mm²	-
Color	Black
Temperature Range - Operating	-40°C ~ 105°C
Contact Mating Finish	Tin
Features	-
Material Flammability Rating	UL94 V-0
Ingress Protection	-
Screw Size	-
Torque - Screw	-
Wire Strip Length	-
Contact Material	Brass
Housing Material	Liquid Crystal Polymer (LCP)
Contact Tail Length	0.102" (2.60mm)
Insulation Height	0.362" (9.20mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1377558-691701310006B
Ultra Librarian 3D Model	Ultra Librarian 691701310006B CAD Model

Description

The WR-TBL Series 7013B is a shrouded header with male pins designed for use in connectors and terminal blocks.

Temperature Range: -40°C to 105°C
Manufacturer: Würth Elektronik
Series: WR-TBL Series
Positions: 6
Pitch: 0.150" (3.81mm)
Header Orientation: Vertical
Mounting Type: Through Hole
Insulation Height: 0.362" (9.20mm)
Contact Material: Brass
Housing Material: Liquid Crystal Polymer (LCP), UL94 V-0
Termination Style: Solder
Current Rating: 10A
Voltage Rating (UL): 300V
Contact Mating Finish: Tin
