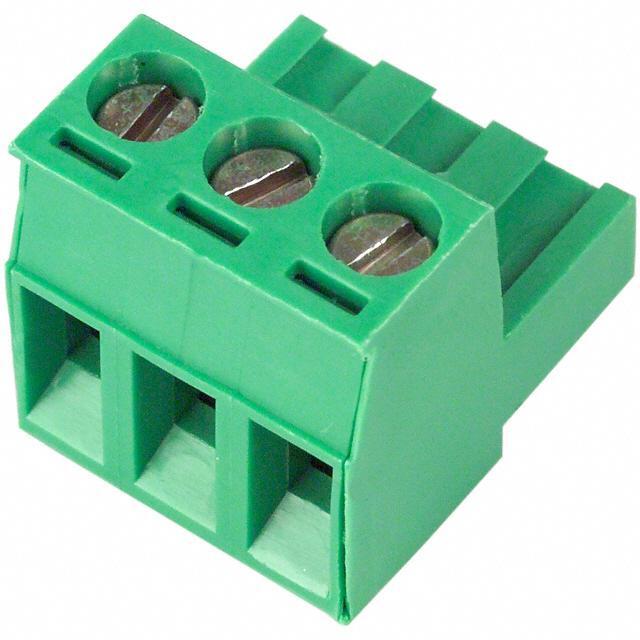

ED950/3 On Shore Technology Inc.
Same model may have multiple batches, images only for reference.

ED950/3

Part No ED950/3
Manufacturer On Shore Technology Inc.
Catalog Headers, Plugs and Sockets
Description TERM BLOCK PLUG 3POS STR 5MM / Conn Terminal Block F 3 POS 5mm Screw RA Cable Mount 15A
Datasheet
ED950/3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer On Shore Technology Inc.
Series ED950
Packaging Bulk
Type Plug, Female Sockets
Number of Positions 3
Positions Per Level 3
Number of Levels 1
Pitch 0.197" (5.00mm)
Plug Wire Entry 180°
Termination Style Screw
Mounting Free Hanging (In-Line)
Current - UL 15A
Voltage - UL 300V
Wire Gauge or Range - AWG 12-22 AWG
Wire Gauge or Range - mm2 2.5mm2
Color Green
Operating Temperature Range -30°C ~ 105°C
Features Retention Latches (Non-Wire Side)
Material Flammability Rating UL94 V-0
Screw Size M3
Torque - Screw 0.5 Nm (4.4 Lb-In)
Wire Strip Length 6mm
Contact Material Copper
Housing Material Polyamide (PA), Nylon
Insulation Height 0.591" (15.00mm)
Win Source Part Number 773656-ED950/3
Popularity Medium
Supply and Demand Status Balance
Family Name ED950
Introduction Date September 02, 2004
ECCN EAR99
Country of Origin Germany
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian ED950/3 CAD Model

Description

The On Shore Technology Inc. ED950/3 connector is a high-quality electronic component that is designed to deliver reliable performance in a wide range of applications.

  • Pitch: 0.197" (5.00mm)
  • Positions per Level: 3
  • Termination Style: Screw
  • Wire Gauge: 12-22 AWG
  • Retention Latches: Yes
  • Housing Material: Polyamide (PA)
  • Packaging: Bulk
  • Pieces per Package: 1
