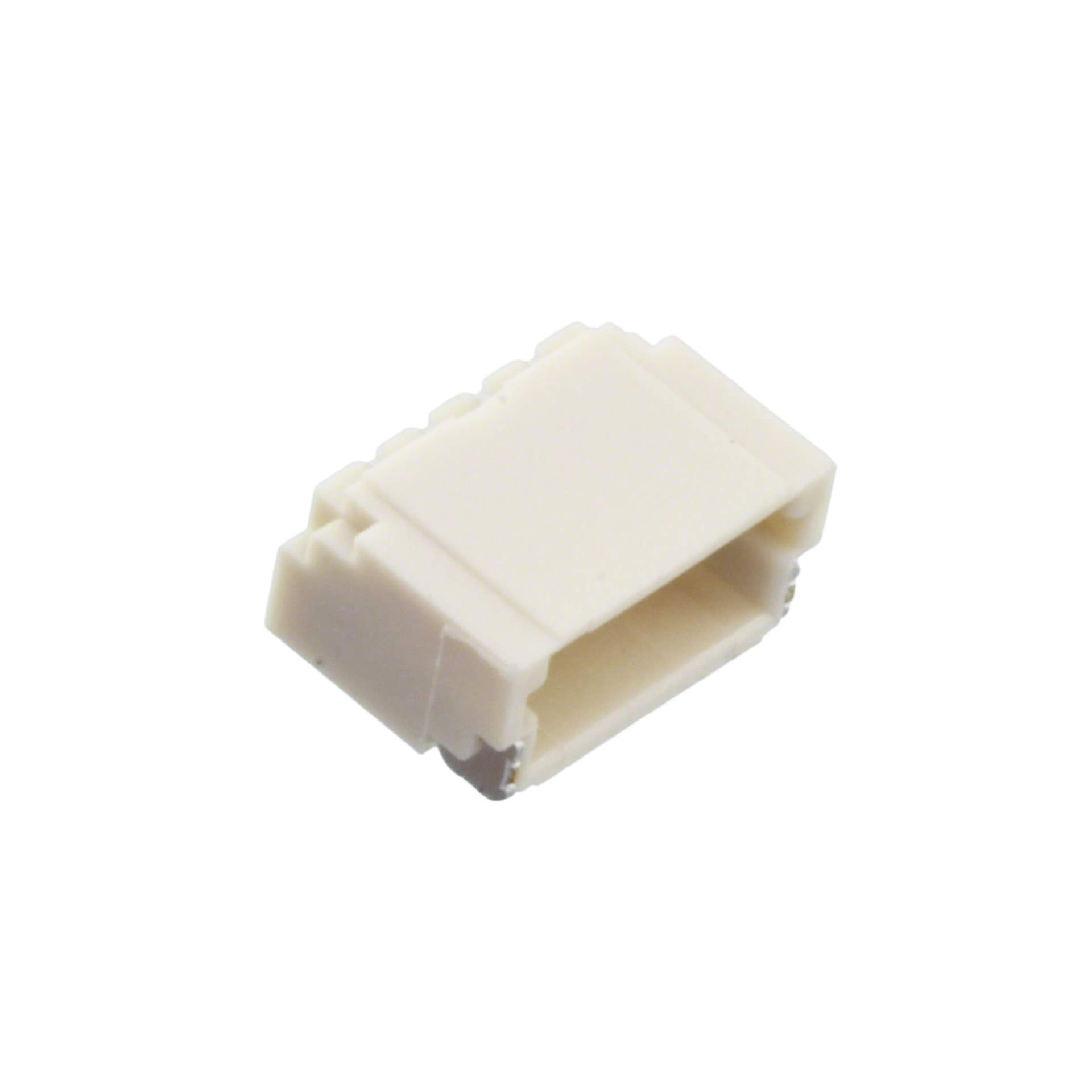

665104131822 Real Image1 665104131822 Real Image2
Same model may have multiple batches, images only for reference.
665104131822 Real Image1 665104131822 Real Image2
665104131822 Real Image1 665104131822 Real Image2
Same model may have multiple batches, images only for reference.

665104131822

Part No 665104131822
Manufacturer Wurth Electronics Inc
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 4POS 1MM / Connector Header Surface Mount, Right Angle 4 position 0.039" (1.00mm)
Datasheet
665104131822 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Wurth Electronics Inc
Series WR-WTB
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 4
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating -
Contact Length - Post -
Overall Contact Length -
Insulation Height 0.118" (3.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A
Voltage Rating 50V
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1,500 pcs
Win Source Part Number 1380999-665104131822
Ultra Librarian 3D Model Ultra Librarian 665104131822 CAD Model

Description

The WR-WTB series from Wurth Electronics Inc is a header connector with 4 positions and 1 row.

  • Number of Positions: 4
  • Number of Rows: 1
  • Features: Solder Retention
  • Contact Type: Male Pin
  • Mounting Type: Surface Mount, Right Angle
  • Termination Type: Solder
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Contact Material: Phosphor Bronze
  • Contact Finish: Tin Plated
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Application: Board to Cable/Wire
  • Pitch: 0.039" (1.00mm)
  • Operating Temperature: -25°C to 85°C
  • Package: Tape & Reel
  • Standard Package Quantity: 1,500 pcs
