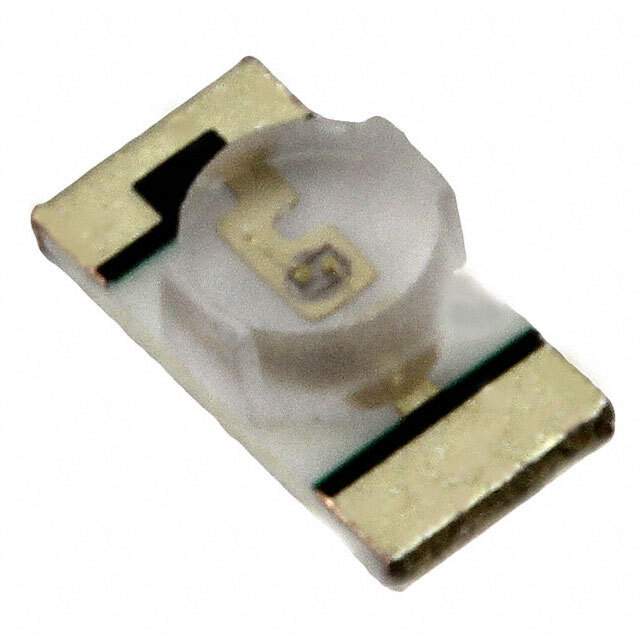

156120YS75000 Real Image
Same model may have multiple batches, images only for reference.

156120YS75000

Part No 156120YS75000
Manufacturer Wurth Electronics Inc
Catalog LED Indication - Discrete
Description WL-SMRW SMD chip LED reverse mount mono-color waterclear | LED YELLOW CLEAR 1206 SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Wurth Electronics Inc.
Packaging Reel
Color Yellow
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 80mcd
Lens Style Rectangle with Flat Top
Voltage - Forward (Vf) 2V
Current - Test 20mA
Viewing Angle 140°
Mounting Style SMT, Bottom Entry
Wavelength - Dominant 589nm
Wavelength - Peak 592nm
Manufacturer Package 1206
Supplier Device Package 1206
Parts Dimension 3.20mm L x 1.60mm W
Height (Maximum) 1.40mm
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 1121319-156120YS75000
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 156120YS75000 CAD Model

Description

The 1121319-156120YS75000 is a standard yellow-colored LED from Wurth Electronics Inc. with a clear lens and a rectangle with a flat top lens style.

  • Color: Yellow
  • Lens Color: Clear
  • Lens Style: Rectangle with Flat Top
  • Viewing Angle: 140 degrees
  • Millicandela Rating: 80mcd
  • Test Current: 20mA
  • Forward Voltage: 2V
  • Peak Wavelength: 592nm
  • Dominant Wavelength: 589nm
  • Package: 1206 SMT
  • Height: 1.40mm
  • Supplied: Reel
  • Supply and Demand Status: Balanced
  • MSL Level: 3 (168 Hours)
  • Popularity: Medium
