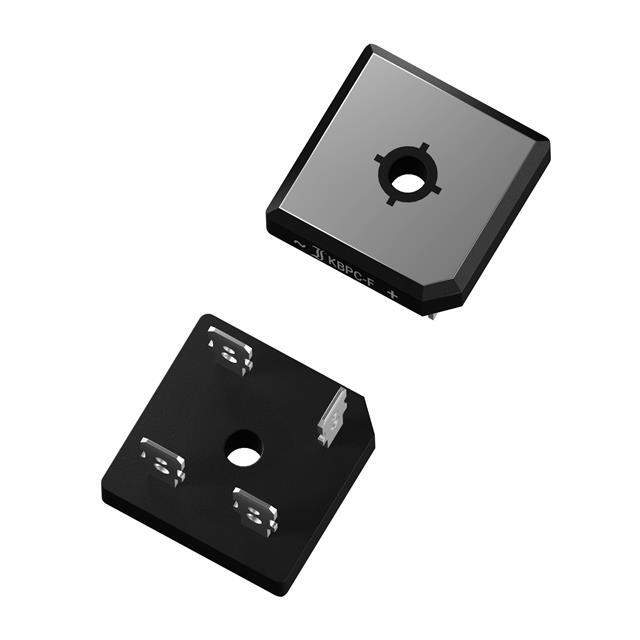

The KBPC3516W is a 35 Amp, 1600V Single-Phase Bridge Rectifier manufactured by Won-Top Electronics. This rectifier is designed for converting AC voltage to DC voltage in various power supply applications. Its high current and voltage ratings make it suitable for heavy-duty industrial and commercial equipment.

Applications

• Power Supplies: Used in power supplies for industrial equipment, appliances, and other electronic devices.
• Battery Chargers: Employed in battery charging circuits for converting AC power to DC power for charging batteries.
• Motor Drives: Integrated into motor drive circuits for converting AC power to DC power for motor control.
• Welding Machines: Used in welding machines for providing the necessary DC power for welding.
• Uninterruptible Power Supplies (UPS): Incorporated into UPS systems for rectifying AC power to charge batteries and supply DC power.

Features

• High Current Rating: Capable of handling up to 35 Amps of forward current.
• High Voltage Rating: Withstands up to 1600V of peak reverse voltage.
• Single-Phase Bridge Rectifier: Converts single-phase AC voltage to DC voltage.
• Low Forward Voltage Drop: Minimizes power losses and improves efficiency.
• High Surge Current Capability: Can withstand high surge currents, providing robustness and reliability.

Benefits

• Efficient Power Conversion: Converts AC power to DC power efficiently with low losses.
• Reliable Performance: Robust design ensures reliable operation in demanding applications.
• High Power Handling: Handles high current and voltage levels, making it suitable for heavy-duty applications.
• Easy Integration: Standard bridge rectifier configuration simplifies circuit design and implementation.
• Versatile Application: Suitable for a wide range of power supply and power conversion applications.

Additional Details

The KBPC3516W is typically mounted on a chassis or heat sink to dissipate heat effectively. Proper thermal management is crucial for optimal performance. The device is available in a KBPC package with standard terminals for easy connection. The datasheet should be consulted for detailed specifications and application guidelines.

Key Specifications:* Forward Current (IF): 35 Amps* Peak Reverse Voltage (VRRM): 1600V* Surge Current (IFSM): Consult Datasheet for specific value* Forward Voltage Drop (VF): Consult Datasheet for typical value* Package Type: KBPC
