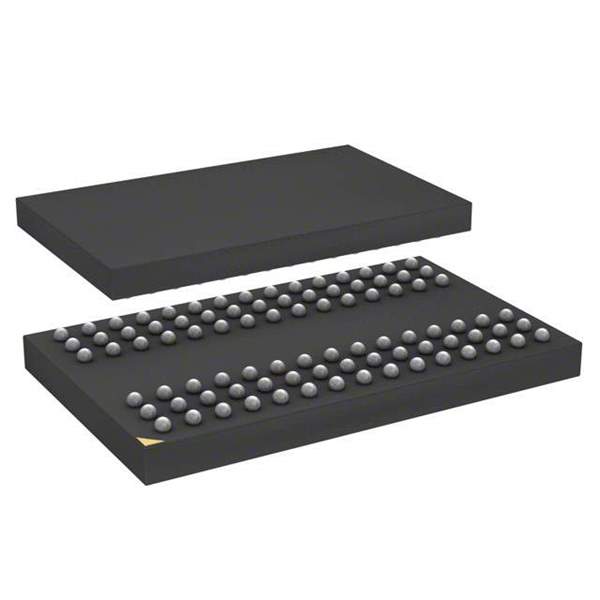

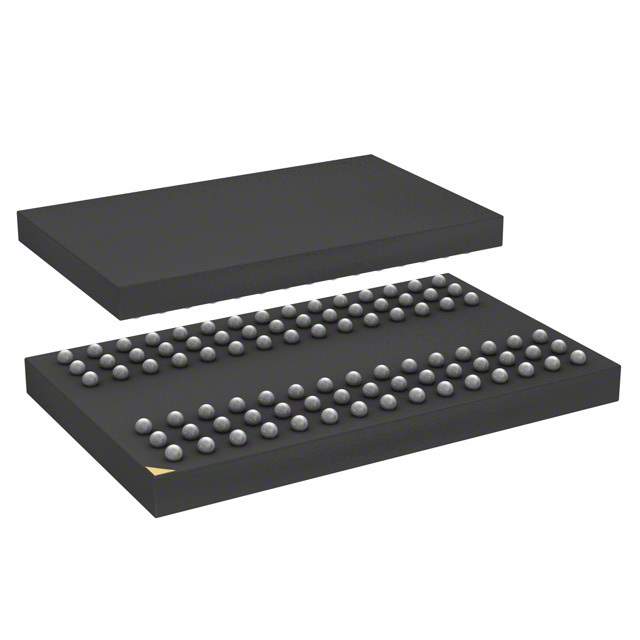

W948D2FBJX5E Real Image
Same model may have multiple batches, images only for reference.

W948D2FBJX5E

Part No W948D2FBJX5E
Manufacturer Winbond Electronics
Catalog Memory
Description IC DRAM 256MBIT PARALLEL 90VFBGA / SDRAM - Mobile LPDDR Memory IC 256Mb (8M x 32) Parallel 200 MHz 5 ns 90-VFBGA (8x13)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory
Mfr Winbond Electronics
Package Tray
Product Status Last Time Buy
Memory Type Volatile
Memory Format DRAM
Technology SDRAM - Mobile LPDDR
Memory Size 256Mb (8M x 32)
Memory Interface Parallel
Clock Frequency 200 MHz
Write Cycle Time - Word, Page 15ns
Access Time 5 ns
Voltage - Supply 1.7V ~ 1.95V
Temperature Range - Operating -25°C ~ 85°C (TC)
Mounting SMD (SMT)
Package / Case 90-TFBGA
Supplier Device Package 90-VFBGA (8x13)
Base Product Number W948D2
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0024
Standard Package 240
Win Source Part Number 1167606-W948D2FBJX5E
Ultra Librarian 3D Model Ultra Librarian W948D2FBJX5E CAD Model

Description

The W948D2FBJX5E is a 256Mb (8M x 32) volatile SDRAM mobile LPDDR memory integrated circuit manufactured by Winbond Electronics.

  • Access Time: 5 ns
  • Clock Frequency: 200 MHz
  • Voltage Supply: 1.7V ~ 1.95V
  • Write Cycle Time: 15ns
  • Package: 90-TFBGA
  • Temperature Range: -25°C ~ 85°C (TC)
  • Memory Format: DRAM
  • Memory Interface: Parallel
  • MSL Level: 3 (168 Hours)
  • REACH Status: REACH Unaffected
  • HTSUS Code: 8542.32.0024
  • Lifecycle Status: Last Time Buy
