Same model may have multiple batches, images only for reference.

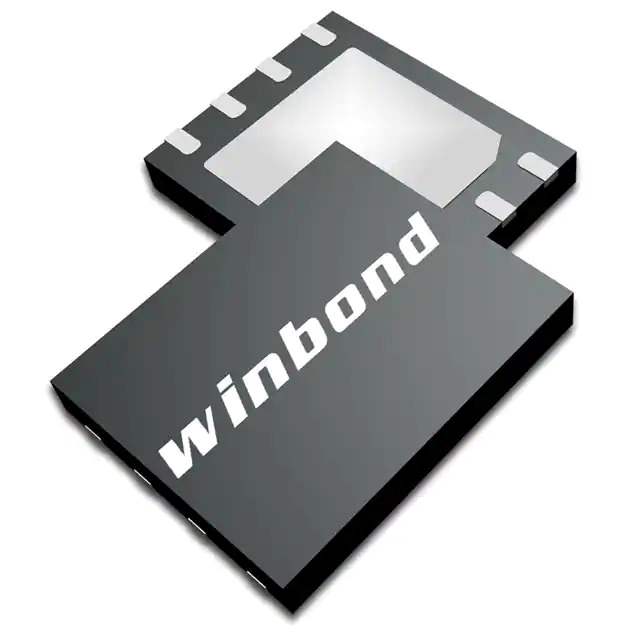

W25Q16JVUUIM TR Real Image
Same model may have multiple batches, images only for reference.

W25Q16JVUUIM TR

Part No W25Q16JVUUIM TR
Manufacturer Winbond Electronics
Catalog Memory
Description IC FLASH 16MBIT SPI/QUAD 8USON
Datasheet
W25Q16JVUUIM TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Winbond Electronics
Series SpiFlash®
Package Tape & Reel
Product Status Active
Programmable Not Verified
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 16Mbit
Memory Organization 2M x 8
Memory Interface SPI - Quad I/O, QPI, DTR
Clock Frequency 133 MHz
Write Cycle Time - Word, Page 3ms
Access Time 6 ns
Voltage - Supply 2.7V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 8-UFDFN Exposed Pad
Supplier Device Package 8-USON (4x3)
Base Product Number W25Q16
Standard Package 5,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0071
Win Source Part Number 849770-W25Q16JVUUIM TR
Ultra Librarian 3D Model Ultra Librarian W25Q16JVUUIM TR CAD Model

Description

The Win Source Part Number 849770-W25Q16JVUUIM TR is a high-performance memory module designed for integrated circuits.

  • Category: Memory - Memory
  • Technology: FLASH - NOR
  • Memory Type: Non-Volatile
  • Memory Size: 16Mbit
  • Access Time: 6ns
  • Voltage Supply: 2.7V to 3.6V
  • Mounting Type: Surface Mount
  • Package: 8-UFDFN Exposed Pad
  • Temperature Range: -40°C to 85°C
  • Memory Format: FLASH
  • Clock Frequency: 133MHz
  • Memory Interface: SPI - Quad I/O, QPI, DTR
  • Manufacturer: Winbond Electronics
  • Product: W25Q16
  • Product Status: Active
