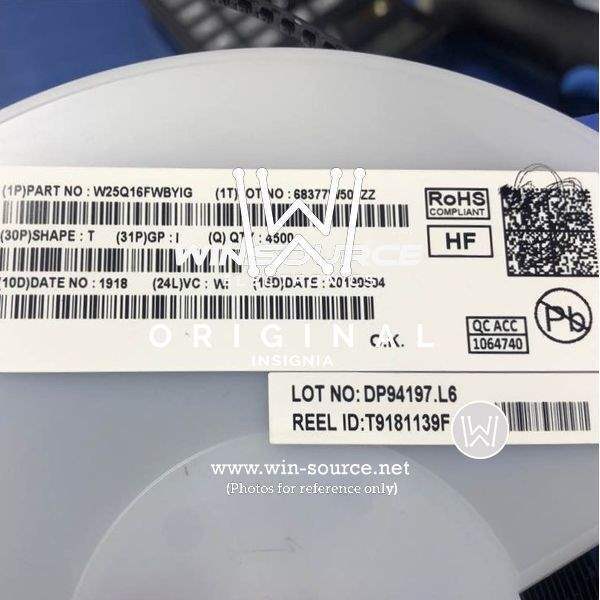

W25Q16FWBYIG Real Image W25Q16FWBYIG label picture
Same model may have multiple batches, images only for reference.
W25Q16FWBYIG Real Image W25Q16FWBYIG label picture
W25Q16FWBYIG Real Image W25Q16FWBYIG label picture
Same model may have multiple batches, images only for reference.

W25Q16FWBYIG

Part No W25Q16FWBYIG
Manufacturer Winbond Electronics
Catalog Memory
Description IC FLASH 16MBIT SPI/QUAD 8WLCSP
Datasheet
W25Q16FWBYIG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Winbond Electronics
Series SpiFlash®
Package Tube
Product Status Obsolete
Programmable Not Verified
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 16Mbit
Memory Organization 2M x 8
Memory Interface SPI - Quad I/O, QPI
Clock Frequency 104 MHz
Write Cycle Time - Word, Page 60µs, 3ms
Voltage - Supply 1.65V ~ 1.95V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount

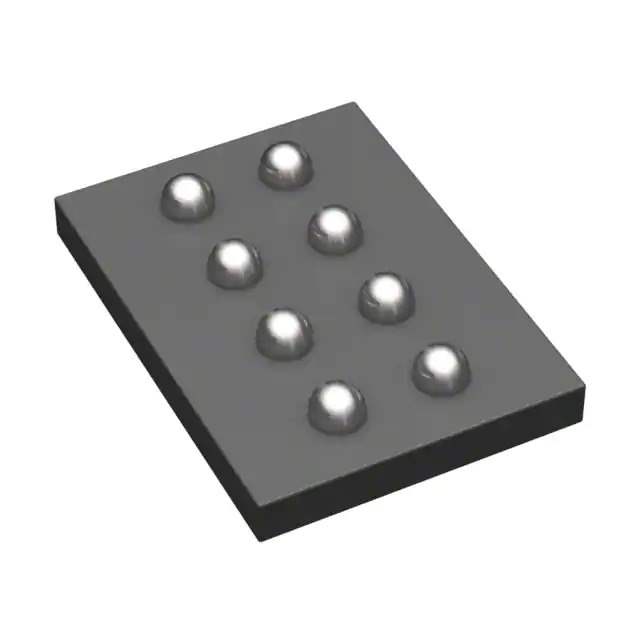

Package / Case 8-UFBGA, WLCSP
Supplier Device Package 8-WLCSP (1.56x2.16)
Base Product Number W25Q16
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN OBSOLETE
HTSUS 8542.32.0071
Win Source Part Number 842142-W25Q16FWBYIG
Ultra Librarian 3D Model Ultra Librarian W25Q16FWBYIG CAD Model

Description

The W25Q16FWBYIG is a 16Mbit non-volatile SPI Flash memory from Winbond Electronics.

  • Series: SpiFlash series
  • Package: 8-UFBGA, WLCSP
  • Memory Organization: 2M x 8
  • Clock Frequency: 104 MHz
  • Voltage Supply Range: 1.65V to 1.95V
  • Memory Type: NOR Flash memory
  • Write Cycle Time (Word): 60 microseconds
  • Write Cycle Time (Page): 3 milliseconds
  • Memory Interfaces: SPI Quad I/O and QPI
  • Mounting Type: surface mount
  • Operating Temperature: -40°C to 85°C
  • REACH Compliance: not affected by REACH regulations
