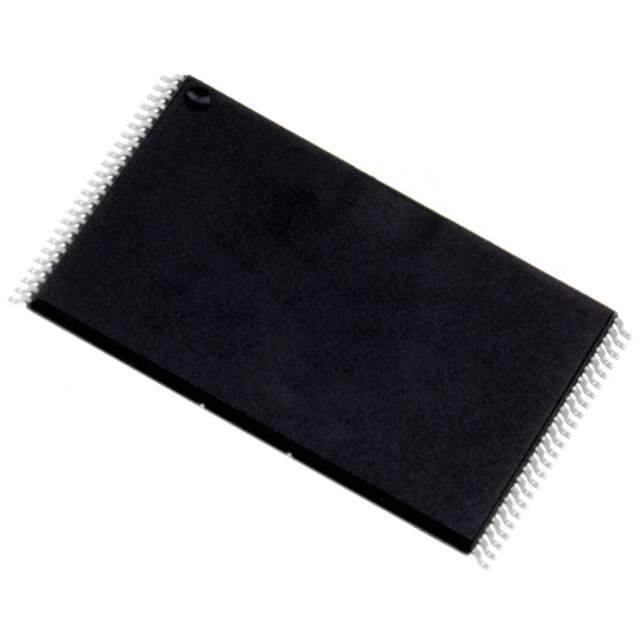

W19B320ATT7H Real Image
Same model may have multiple batches, images only for reference.

W19B320ATT7H

Part No W19B320ATT7H
Manufacturer Winbond Electronics
Catalog Flash
Description IC FLASH 32MBIT 70NS 48TSOP / Flash Parallel 3V/3.3V 32M-bit 4M x 8/2M x 16 70ns 48-Pin TSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Winbond Electronics
Packaging Tray
Part Status Obsolete(EOL)
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH
Memory Size 32Mb (4M x 8, 2M x 16)
Write Cycle Time - Word, Page 70ns
Access Time 70ns
Memory Interface Parallel
Operating Supply Voltage 2.7 V ~ 3.6 V
Operating Temperature Range -20°C ~ 85°C (TA)
Mounting SMD
Package 48-TFSOP (0.724", 18.40mm Width)
Manufacturer Package 48-TSOP
Win Source Part Number 799262-W19B320ATT7H
Popularity Medium
Supply and Demand Status Limited
Family Name W19B320
Introduction Date December 27, 2005
ECCN 3A991.b.1.a
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian W19B320ATT7H CAD Model

Description

The Winbond Electronics W19B320ATT7H is an obsolete (EOL) electronic component that is suitable for use in various integrated circuits (ICs) applications.

  • Memory Type: Non-volatile
  • Memory Size: 32Mb (4M x 8, 2M x 16)
  • Part Status: Obsolete (EOL)
  • Supply: Limited
  • Estimated EOL Date: Obsolete/end of life
