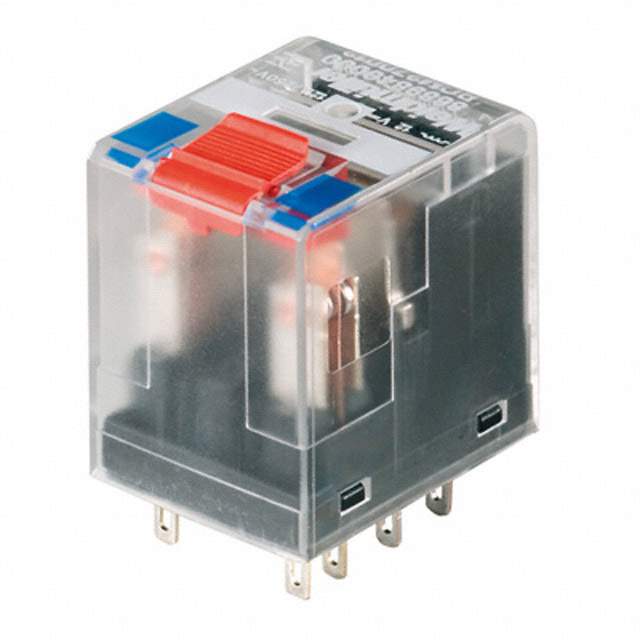

8690150000 Real Image
Same model may have multiple batches, images only for reference.

8690150000

Part No 8690150000
Manufacturer Weidmuller
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 6A 115V
Datasheet
8690150000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Estimated Pruduction Lead Time 7 Weeks
Features General Purpose Relay 4PDT (4 Form C) 115VAC Coil Socketable
Manufacturer Weidmuller
Series RCM
Package Bulk
Operating Temperature Range -40°C ~ 70°C
Mounting Socketable
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0050
Other Part Number 281-6075, 8690150000-ND, RCM570S15
Quantity per package 10
Popularity High
Supply and Demand Status Limited
Win Source Part Number 891523-8690150000
Ultra Librarian 3D Model Ultra Librarian 8690150000 CAD Model

Description

The Weidmuller 8690150000 is a high-popularity electronic component that belongs to the RCM series.

  • Manufacturer: Weidmuller
  • Product Name: 8690150000
  • Series: RCM series
  • Type: General-purpose relay
  • Configuration: 4PDT (4 Form C)
  • Coil Voltage: 115VAC
  • Mounting: Socketable
