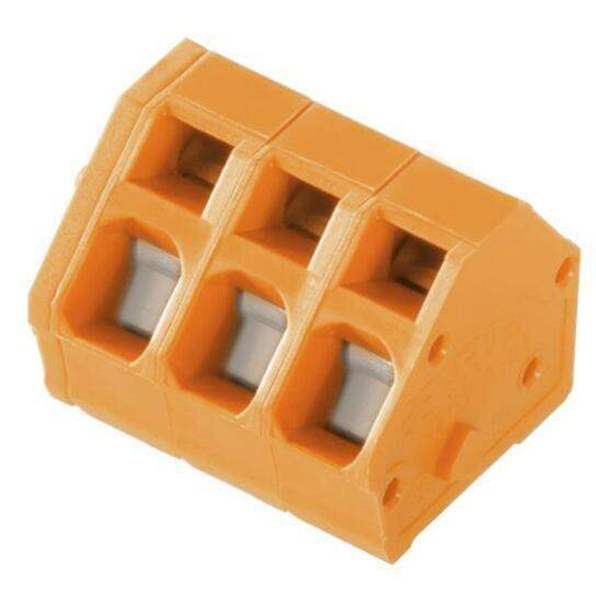

1960140000Weidmüller
Same model may have multiple batches, images only for reference.

1960140000

Part No 1960140000
Manufacturer Weidmuller
Catalog Terminal Blocks
Description TERM BLOCK 13POS 45DEG 5MM PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Wire to Board
Series Omnimate LMZF
Package Bulk
Product Status Active
Mating Orientation 45° (135°) Angle with Board
Mounting Type Through Hole
Operating Temperature -50°C ~ 120°C
Housing Material Thermoplastic, Wemid
Contact Material - Plating Electrolytic Copper - Tin Plated
Win Source Part Number WS1206732-1960140000
Ultra Librarian 3D Model Ultra Librarian 1960140000 CAD Model

Description

The compact installation terminal for the standard wire cross-section size of 2.5mm². Tension clamp connection with a 135° outlet direction, in variable pitch: 5.00 - 5.08 mm (1 part with 2 pitches).
Rated data:
• 24A at 40°C / 630V (IEC) or 15A / 300V (UL)
• 0.13 - 2.5 mm² (IEC) / 26 - 14 AWG (UL)
• Flammability class according to UL 94: V0
