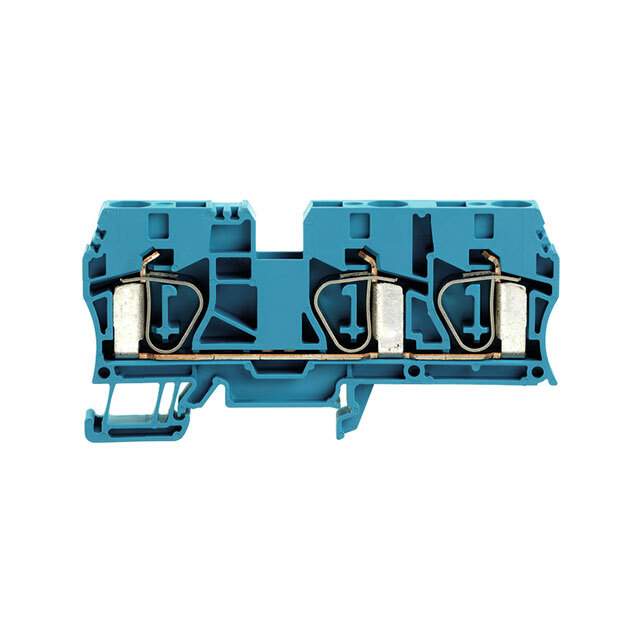

1767700000 Real Image1 1767700000 Real Image2
Same model may have multiple batches, images only for reference.
1767700000 Real Image1 1767700000 Real Image2
1767700000 Real Image1 1767700000 Real Image2
Same model may have multiple batches, images only for reference.

1767700000

Part No 1767700000
Manufacturer Weidmuller
Catalog Terminal Blocks
Description CONN TERM BLK FEED THRU 6-16 AWG / Terminal Block Connector 3 Position Feed Through Blue 6-16 AWG
Datasheet
1767700000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Din Rail, Channel
Mfr Weidmuller
Series Z
Package Bulk
Type Feed Through
Disconnect Type -
Number of Positions 3
Number of Levels 1
Terminal - Width 10.1mm
Termination Style Push In, Spring
Current - IEC 57 A
Voltage - IEC 800V
Current - UL 60 A
Voltage - UL 600V
Wire Gauge or Range - AWG 6-16 AWG
Wire Gauge or Range - mm2 1.5-16mm²
Features -
Color Blue
Fuse Type -
Material - Insulation Thermoplastic, Wemid
Material Flammability Rating UL94 V-0
Stripping Length 18mm
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Standard Package 20 pcs
Win Source Part Number 1380574-1767700000
Ultra Librarian 3D Model Ultra Librarian 1767700000 CAD Model

Description

The Z series feed-through terminal block is a versatile and reliable component for electrical connections.

  • Series: Z series
  • Positions: 3
  • Levels: 1
  • Termination Style: Push-In with Spring Mechanism
  • Current Rating (IEC): 57 A
  • Current Rating (UL): 60 A
  • Voltage Rating (IEC): 800V
  • Voltage Rating (UL): 600V
  • Wire Gauge: 6-16 AWG or 1.5-16mm²
  • Insulation Material: Thermoplastic and Wemid
  • Flammability Rating: UL94 V-0
  • Package: Bulk of 20 pieces
  • Terminal Width: 10.1mm
  • Stripping Length: 18mm
