Part No 1697230000
Manufacturer Weidmuller
Catalog Terminal Blocks

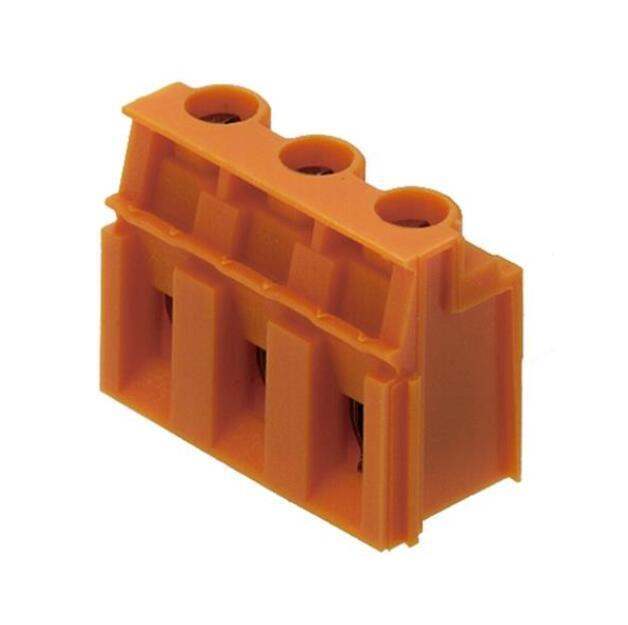

Description TERM BLK 3POS SIDE ENT 7.5MM PCB
Datasheet
1697230000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Wire to Board
Series Omnimate LP
Package Bulk
Product Status Active
Number of Levels 1
Positions Per Level 3
Pitch 0.295" (7.50mm)
Mating Orientation Horizontal with Board
Mounting Type Through Hole
Win Source Part Number WS1206232-1697230000
Ultra Librarian 3D Model Ultra Librarian 1697230000 CAD Model

Description

This PCB terminal provides connections for 1000 V, 6 mm² conductor cross-section and 32 A with proven clamping yoke connection at 7.50 mm and 7.62 mm pitch, conductor outlet direction in 90° and 180° design.
