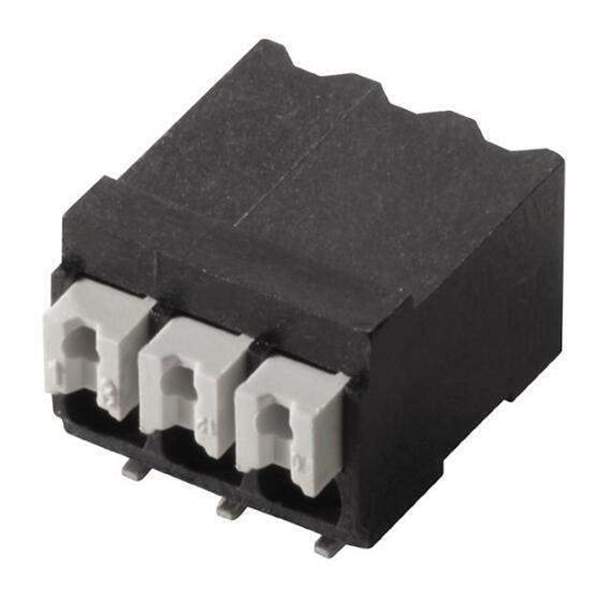

1412420000 Weidmüller
Same model may have multiple batches, images only for reference.

1412420000

Part No 1412420000
Manufacturer Weidmuller
Catalog Terminal Blocks
Description PCB TERMINAL, 3.50 MM, 3POS, 90
Datasheet
1412420000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1205898-1412420000
Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Number of Levels 1
Positions Per Level 3
Pitch 0.138" (3.50mm)
Mating Orientation Vertical with Board
Current 12A
Voltage 300V
Wire Gauge 16-24 AWG
Mounting Type Surface Mount
Wire Termination Screwless - Push Button Clamp
Features Interlocking (Side)
Color Black
Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Wire to Board
Package Box
Product Status Active
Ultra Librarian 3D Model Ultra Librarian 1412420000 CAD Model

Description

PCB terminals with spring connection and direct PUSH IN technology. A milestone in connection technology. Amazingly simple and simply amazing in practice:
• Connect and easily detach solid wires or wires with wire-end ferrules without using tools
• Processed automatically in the reflow or vapour phase
• Potentials and clamping points marked clearly by coloured push buttons
