Part No 1290310000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets

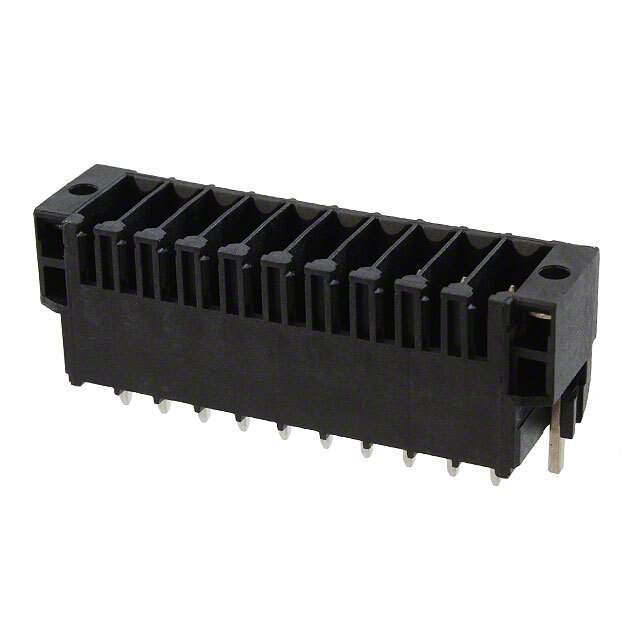

Description TERM BLOCK HDR 20POS VERT 3.5MM
Datasheet
1290310000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310500-1290310000
Manufacturer Weidmüller
Category Connectors, Interconnects > Terminal Blocks > Headers, Plugs and Sockets
Packaging Bulk
Part Status Active
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 20
Positions Per Level 10
Number of Levels 2
Pitch 0.138" (3.50mm)
Header Orientation Vertical
Termination Style Solder
Mounting Type Through Hole
Ultra Librarian 3D Model Ultra Librarian 1290310000 CAD Model

Description

High-temperature-resistant male header for side-by-side mounting.
• Touch-safe
• Pluggable to the female plug B2CF 3.50 PUSH IN
• Plugging direction parallel to PCB (recumbent)
• Housingvariants:closed(G)andwith solder flange(LF).
• Packed in a carton (BX)
• 3.2-mm pin length suitable for reflow and wave soldering.
