Same model may have multiple batches, images only for reference.

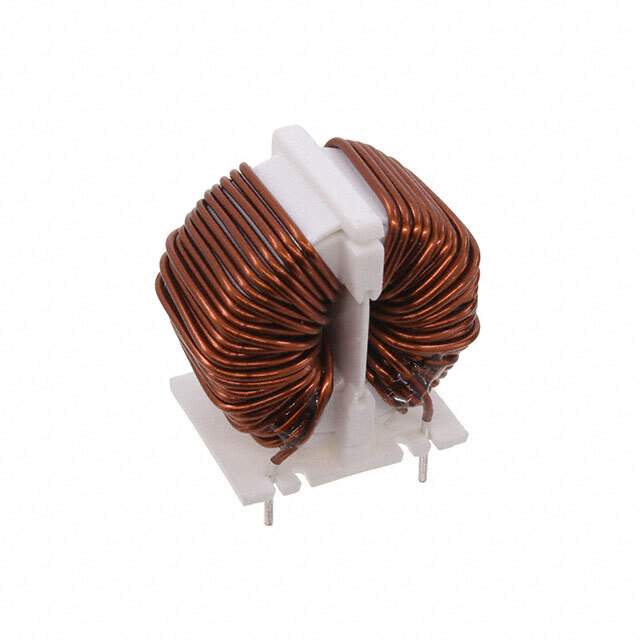

SC-06-60J Real Image
Same model may have multiple batches, images only for reference.

SC-06-60J

Part No SC-06-60J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 6 mH @ 10 kHz
Current Rating (Max) 6A
DC Resistance (DCR) (Max) 60mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.339" L x 0.984" W (34.00mm x 25.00mm)
Height (Max) 1.299" (33.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-06
Other Names UALSC0660J0000,399-SC-06-60J
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276947-SC-06-60J
Ultra Librarian 3D Model Ultra Librarian SC-06-60J CAD Model

Description

The SC series common mode choke is a power line filter with a voltage rating of 250V AC/DC and a current rating of 6A.

  • Voltage Rating: 250V AC/DC
  • Current Rating: 6A
  • Standard Package: 200
  • Packaging: Tray
  • Height: 1.299 inches
  • Mounting Type: Through-hole
  • Number of Lines: 2
  • Inductance: 6 mH @ 10 kHz
  • DC Resistance: 60mOhm max
  • Package/Case: Vertical, 4 PC pin
  • Operating Temperature Range: 25°C to 120°C
  • MSL Level: Not Applicable
  • REACH: REACH Unaffected
  • Manufacturer: Kemet
