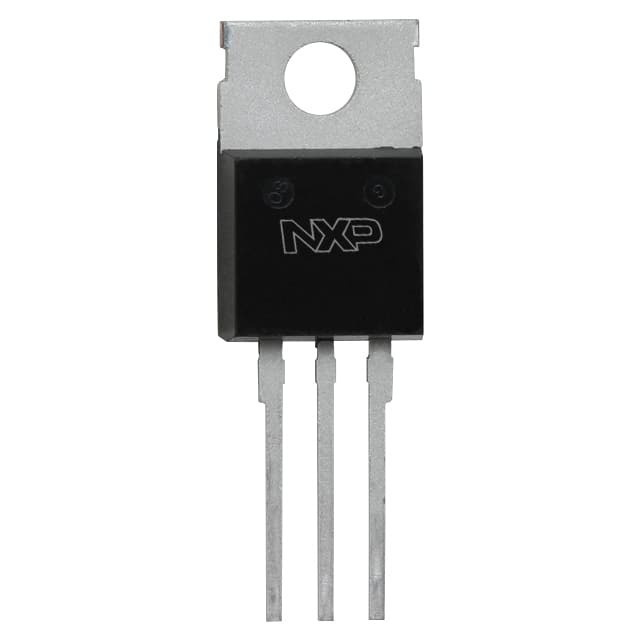

Same model may have multiple batches, images only for reference.
BTA140-800,127 WeEn Semiconductors
Same model may have multiple batches, images only for reference.

BTA140-800,127

Part No BTA140-800,127
Manufacturer WeEn Semiconductors
Catalog Triacs
Description TRIAC 800V 25A TO220AB / TRIAC Standard 800 V 25 A Through Hole TO-220AB
Datasheet
BTA140-800,127 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - TRIACs
Mfr WeEn Semiconductors
Package Tube
Triac Type Standard
Voltage - Off State 800 V
Current - On State (It (RMS)) (Max) 25 A
Voltage - Gate Trigger (Vgt) (Max) 1.5 V
Current - Non Rep. Surge 50, 60Hz (Itsm) 190A, 209A
Current - Gate Trigger (Igt) (Max) 35 mA
Current - Hold (Ih) (Max) 60 mA
Configuration Single
Temperature Range - Operating 125°C (TJ)
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220AB
Base Product Number BTA140
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Other Names 568-3686-5-ND,933815690127,568-3686-5,1740-1098,BTA140-800
Standard Package 1,000
Win Source Part Number 1150476-BTA140-800,127
Ultra Librarian 3D Model Ultra Librarian BTA140-800,127 CAD Model

Description

The supply and demand status of this component is limited.

  • Maximum Voltage: 800 V
  • Maximum Current: 25 A
  • Maximum Non-Repetitive Surge: 190A, 209A
  • Package: TO-220-3
  • Win Source Part Number: 1150476-BTA140-800,127
