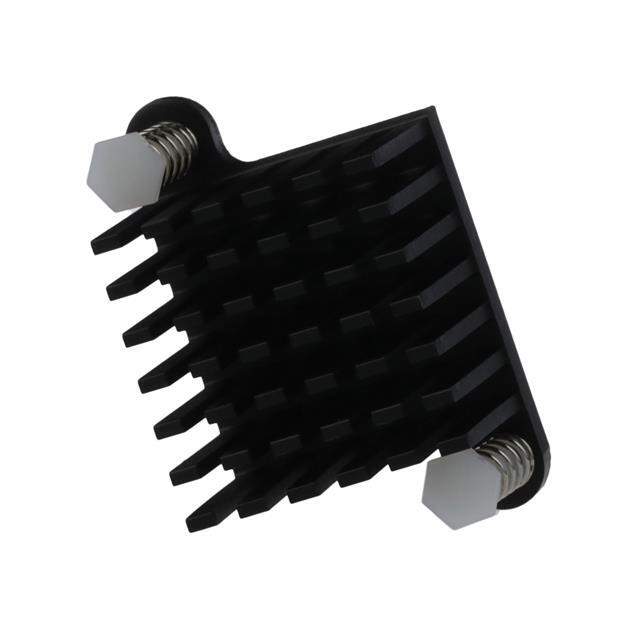

960-23-18-S-AB-0 Real Image
Same model may have multiple batches, images only for reference.

960-23-18-S-AB-0

Part No 960-23-18-S-AB-0
Manufacturer Wakefield-Vette
Catalog Thermal - Heat Sinks
Description HEATSINK 23X18MM SIDE PUSH PIN / Heat Sink BGA Aluminum Top Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Thermal - Heat Sinks
Mfr Wakefield-Vette
Series 960
Package Box
Type Top Mount
Package Cooled BGA
Attachment Method Push Pin
Shape Square, Pin Fins
Length 0.906" (23.00mm)
Width 0.906" (23.00mm)
Fin Height 0.709" (18.00mm)
Thermal Resistance @ Forced Air Flow 4.50°C/W @ 200 LFM
Material Aluminum
Material Finish Black Anodized
Base Product Number 960-23
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Win Source Part Number 1339955-960-23-18-S-AB-0
Ultra Librarian 3D Model Ultra Librarian 960-23-18-S-AB-0 CAD Model

Description

The 1339955-960-23-18-S-AB-0 is a heat sink manufactured by Wakefield-Vette.

  • Mount Type: Top Mount
  • Type: Box and Pin Fins
  • Material: Aluminum
  • Finish: Black Anodized
  • Package Cooled: BGA
  • Attachment Method: Push Pin
  • Thermal Resistance: 4.50°C/W @ 200 LFM
  • REACH: Unaffected
  • ECCN: EAR99
  • Standard Package: 100
  • Fin Height: 0.709 inches (18.00mm)
