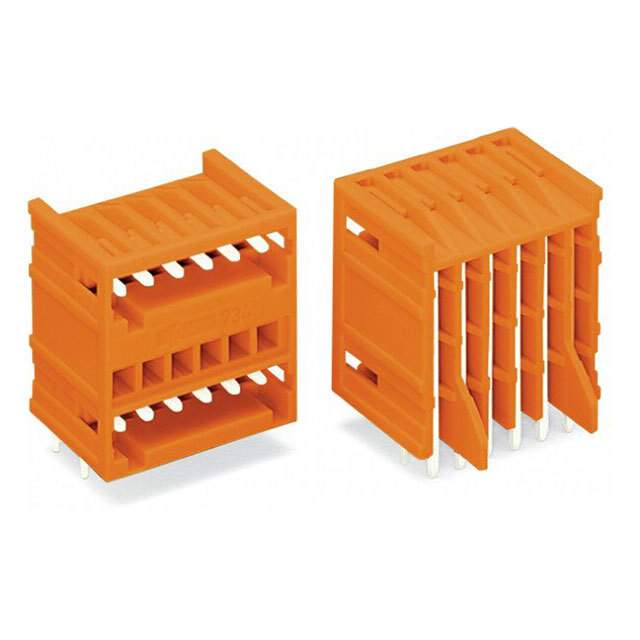

The MCSMINI series from WAGO Corporation is a shrouded male pin header terminal block.

• Number of Positions: 24
• Positions Per Level: 12
• Number of Levels: 2
• Pitch: 0.150" (3.81mm)
• Header Orientation: 90°, Right Angle
• Termination Style: Solder
• Current Rating: 10A
• Voltage Rating (IEC): 320V
• Voltage Rating (UL): 300V
• Contact Material: Electrolytic Copper
• Contact Mating Finish: Tin
• Housing Material: Polyamide (PA66), Nylon 6/6
• Material Flammability Rating: UL94 V-0
• Mounting Type: Through Hole
• Package: Box
• Operating Temperature: -60°C ~ 100°C
• Supplier: WAGO Corporation
