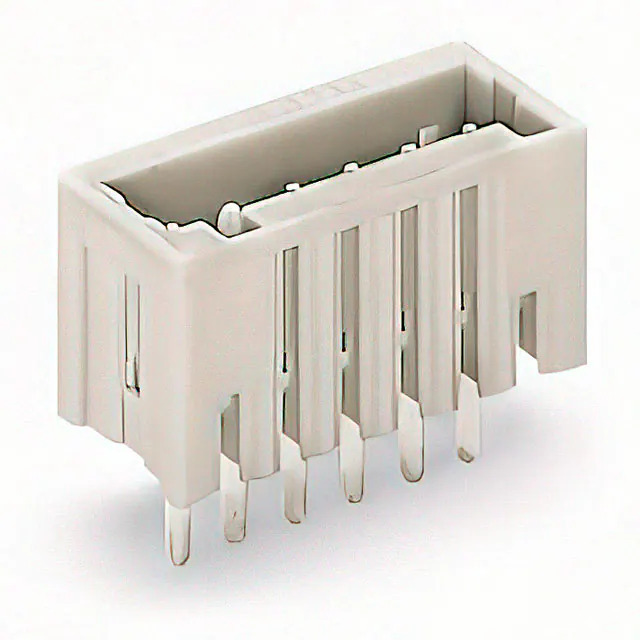

Same model may have multiple batches, images only for reference.
733-342 WAGO Corporation
Same model may have multiple batches, images only for reference.

733-342

Part No 733-342
Manufacturer WAGO Corporation
Catalog Headers, Plugs and Sockets
Description THT MALE HEADER; 0.8 X 0.8 MM SO / 12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.098" (2.50mm) 90°, Right Angle Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr WAGO Corporation
Series MCSMICRO
Package Box
Product Status Active
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 12
Positions Per Level 12
Number of Levels 1
Pitch 0.098" (2.50mm)
Header Orientation 90°, Right Angle
Plug Wire Entry -
Termination Style Solder
Mounting Type Through Hole
Current - IEC 6A
Voltage - IEC 320 V
Current - UL 4 A
Voltage - UL 150 V
Wire Gauge or Range - AWG -
Wire Gauge or Range - mm² -
Color Gray
Temperature Range - Operating -60°C ~ 100°C
Contact Mating Finish Tin
Features -
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size -
Torque - Screw -
Wire Strip Length -
Contact Material Electrolytic Copper
Housing Material Polyamide (PA66), Nylon 6/6
Contact Tail Length 0.181" (4.60mm)
Insulation Height 0.350" (8.89mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364650-733-342
Ultra Librarian 3D Model Ultra Librarian 733-342 CAD Model

Description

The WAGO Corporation MCSMICRO series is a header with male pins and shrouded (4 side) terminal block.

  • Series: MCSMICRO
  • Application: Connectors and Interconnects, Terminal Blocks
  • Operating Temperature: -60°C to 100°C
  • Mounting Type: Through Hole
  • Color: Gray
  • Number of Positions: 12
  • Insulation Height: 0.350" (8.89mm)
  • Contact Material: Electrolytic Copper
  • Flammability Rating: UL94 V-0
  • Pitch: 0.098" (2.50mm)
  • Termination Style: Solder
  • Housing Material: Polyamide (PA66) and Nylon 6/6
  • Current Rating (IEC): 6A
  • Current Rating (UL): 4A
  • Voltage Rating (UL): 150V
  • Contact Mating Finish: Tin
