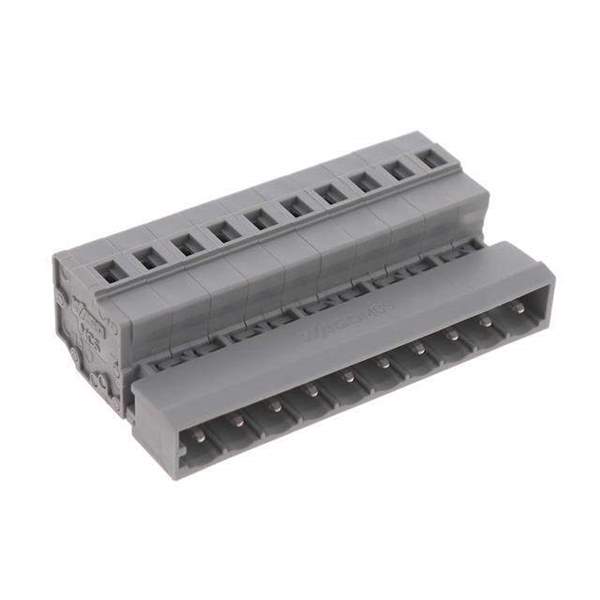

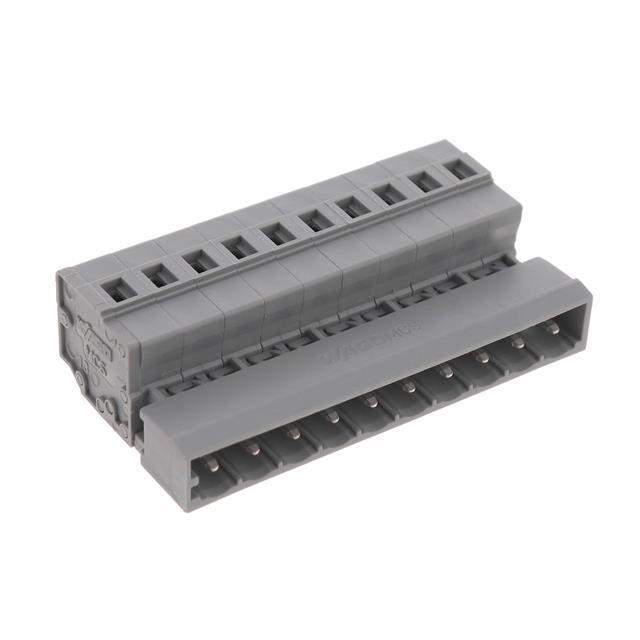

231-610 Real Image
Same model may have multiple batches, images only for reference.

231-610

Part No 231-610
Manufacturer WAGO Corporation
Catalog Headers, Plugs and Sockets
Description 1-CONDUCTOR MALE CONNECTOR; 2.5 / 10 Position Terminal Block Plug, Male Pins 0.197" (5.00mm) 180° Free Hanging (In-Line)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer WAGO Corporation
Packaging Box
Type Plug, Male Pins
Number of Positions 10
Positions Per Level 10
Number of Levels 1
Pitch 0.197" (5.00mm)
Plug Wire Entry 180°
Termination Style Screwless - Spring Cage, Tension Clamp
Mounting Free Hanging (In-Line)
Current - IEC 12A
Voltage - IEC 630 V
Current - UL 15 A
Voltage - UL 600 V
Wire Gauge or Range - AWG 12-28 AWG
Wire Gauge or Range - mm2 0.08-2.5mm²
Color Gray
Temperature Range - Operating -60°C ~ 100°C
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Wire Strip Length 8-9mm
Contact Material Electrolytic Copper
Housing Material Polyamide (PA66), Nylon 6/6
Insulation Height 0.563" (14.30mm)
Moisture Sensitivity Level (MSL) Not Applicable
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 51110800,0231-610,0231610,2943-231-610,2946-231-610,0231-0610,231610,2943-231-610-ND
Standard Package 1
Win Source Part Number 1332283-231-610
Ultra Librarian 3D Model Ultra Librarian 231-610 CAD Model

Description

The WAGO Corporation 1145745 is a plug, male pins type terminal block with 10 positions per level, 10 levels, and a pitch of 0.197" (5.00mm).

  • Positions Per Level: 10
  • Number of Levels: 10
  • Pitch: 0.197" (5.00mm)
  • Current Rating (IEC): 12A
  • Current Rating (UL): 15A
  • Voltage Rating (IEC): 630V
  • Voltage Rating (UL): 600V
  • Termination Style: Screwless, Spring Cage and Tension Clamp
  • Wire Gauge: 12-28 AWG and 0.08-2.5mm²
  • Wire Strip Length: 8-9mm
  • Plug Wire Entry: 180°
  • Temperature Range: -60°C to 100°C
  • ROHS Compliant: Yes
