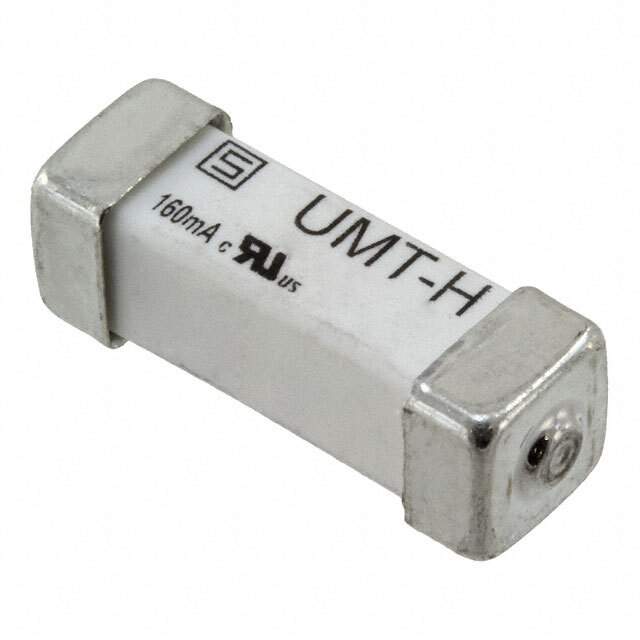

3403.0289.11 Real Image
Same model may have multiple batches, images only for reference.

3403.0289.11

Part No 3403.0289.11
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BRD MNT 30A 250VAC/72VDC / 30 A 250 V AC 72 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Datasheet
3403.0289.11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr SCHURTER Inc.
Series UMT-H
Package Strip
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 30 A
Voltage Rating - AC 250 V
Voltage Rating - DC 72 V
Response Time Slow Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 100A AC, 500A DC
Melting I2t 1650
Approval Agency CQC, cURus, VDE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.606" L x 0.211" W x 0.211" H (15.40mm x 5.35mm x 5.35mm)
Base Product Number 3403.0289
MSL Level Vendor Undefined
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.10.0040
Other Names 486-3290
Standard Package 100
Win Source Part Number 1208860-3403.0289.11
Ultra Librarian 3D Model Ultra Librarian 3403.0289.11 CAD Model

Description

The SCHURTER Inc. 3403.0289.11 is a slow blow board mount fuse designed for circuit protection.

  • Voltage Rating (AC): 250 V AC
  • Voltage Rating (DC): 72 V DC
  • Breaking Capacity (AC): 100A AC @ rated voltage
  • Breaking Capacity (DC): 500A DC @ rated voltage
  • Melting I2t: 1650
  • Package: Strip
  • Standard Package: 100
  • Mounting: SMD (SMT)
  • Package/Case: 2-SMD, Square End Block
  • Operating Temperature: -55°C to 125°C
  • REACH: Compliant
  • ECCN: EAR99
